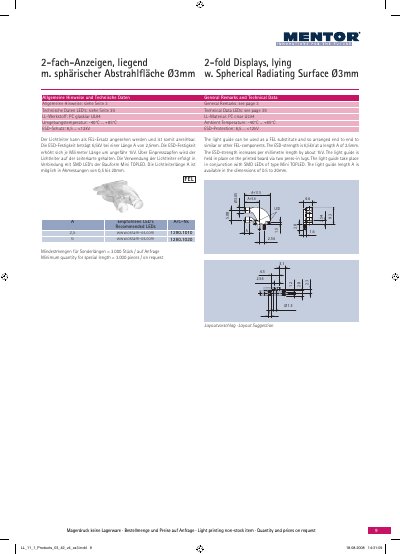

MENTOR 2-fach-Anzeigen liegend m. sphärischer Abstrahlfläche Ø3mm 2-fold Displays lying w. Spherical Radiating Surface Ø3mm
The OSRAM 1280.1020 light guide is presented as a FEL‑substitute component for use with SMD Mini TOPLED LEDs. It is mounted on a printed circuit board via press‑in lugs and is available in custom lengths from 0.5 mm to 20 mm.
Technical data include a PC clear UL94 material, an ambient operating temperature from –40 °C to +85 °C, and an ESD‑strength of 6.5 kV at a 2.5 mm length (approximately +1 kV per additional millimetre). Recommended LEDs and layout suggestions are provided in the accompanying pages. This manual is written in German.
Mentor Ø3mm specifications
| Ambient Temperature | -40 °C to +85 °C |
|---|---|
| Light Guide Length | 0.5 mm to 20 mm |
| Recommended LEDs | Mini TOPLED SMD LEDs |
