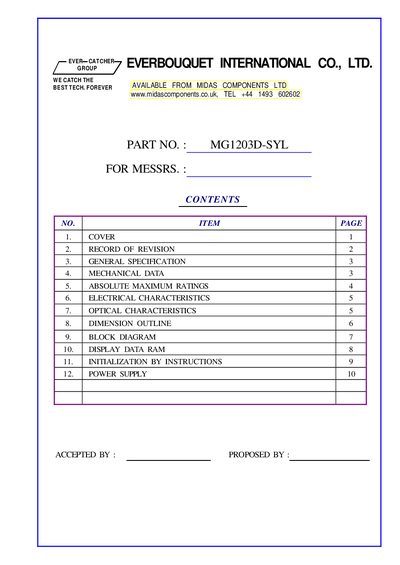

This document is about the technical data of MG1203D-SYL, including general specifications, mechanical data, absolute maximum ratings, electrical characteristics, optical characteristics, dimension outline, block diagram, display data RAM, initialization by instructions and power supply.
This document details the MG1203D-SYL LCD module from Everbouquet, including general specifications, mechanical dimensions, and maximum rating limits. It also covers electrical and optical performance parameters such as power supply requirements, voltage levels, and display characteristics.
Additional sections describe the module's physical layout, pin connections, block diagram, display RAM organization, and initialization instructions, giving designers the information needed for integration and troubleshooting.
| Number of dots | 122 W × 32 H |
|---|---|
| Module size (max) | 68.0 mm W × 31.75 mm H × 10.0 mm T |
| Dot size | 0.39 mm × 0.39 mm |
| Dot pitch | 0.43 mm × 0.43 mm |
| LCD type | STN, Yellow‑Green, Transflective |
| LED color | Yellow‑Green |
| Logic power‑supply voltage range | 0 V to 6.0 V |
| Input high voltage (VIH) | 2.0 V |
| Output high voltage (VOH) | 2.4 V |
| LED drive current | 40 mA to 50 mA |
The module has a resolution of 122 dots wide by 32 dots high.
It uses an STN, Yellow‑Green, transflective LCD.
