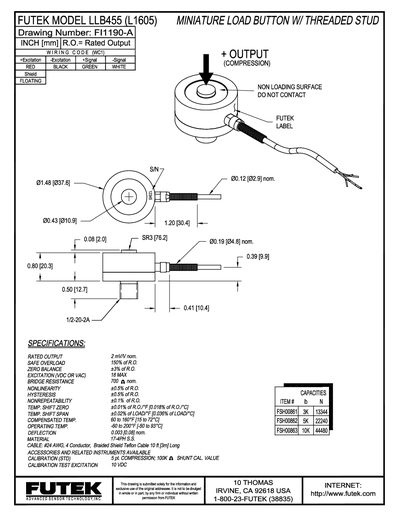

The LLB455 is a miniature load button with a threaded stud, designed for compression loading applications. It features a rated output of 2 mV/V and a safe overload capability of 150 % of the rated output.
Key specifications include an excitation range up to 18 V (DC or AC), bridge resistance of 700 Ω, and operating temperatures from 60 °F to 200 °F. The sensor is constructed from 17‑4PH stainless steel and is supplied with a #24 AWG, 4‑conductor braided shield Teffon cable up to 3 m long.
| Rated Output | 2 mV/V |
|---|---|
| Safe Overload | 150 % of rated output |
| Zero Balance | 43 % of rated output |
| Excitation (VDC or VAC) | 18 V max |
| Bridge Resistance | 700 Ω |
| Nonlinearity | 40.5 % of rated output |
| Hysteresis | 40.5 % of rated output |
| Nonrepeatability | 40.1 % of rated output |
| Temperature Shift Zero | 40.01 %/°F (0.018 %/°C) |
| Temperature Shift Span | +0.02 %/°F (0.036 %/°C) |
| Compensated Temperature Range | 60 °F to 160 °F (15 °C to 72 °C) |
| Operating Temperature Range | 60 °F to 200 °F (‑50 °C to 93 °C) |
| Deflection | 0.003 % nominal |
| Material | 17‑4PH stainless steel |
| Cable | #24 AWG, 4‑conductor, braided shield Teffon cable, 3 m length |
The rated output is 2 mV/V nominal.
It can tolerate a safe overload of 150 % of its rated output.
The sensor operates from 60 °F to 200 °F (‑50 °C to 93 °C).
A #24 AWG, 4‑conductor, braided shield Teffon cable up to 3 m long is recommended.
