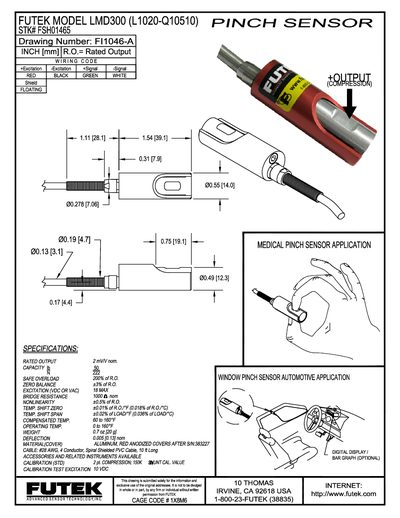

The LMD300 is a pinch sensor designed for medical and automotive applications, offering a rated output of 2 mV nominal and a safe overload capacity of 200 % of the rated output. The sheet includes wiring code information, material details, and calibration procedures.
Key specifications such as excitation voltage, bridge resistance, temperature ranges, and physical dimensions are listed, along with optional accessories like a digital display and bar‑graph output. Calibration data and cable information are also provided.
| Rated Output | 2 mV nominal |
|---|---|
| Capacity | lp 3B |
| Safe Overload | 200 % of R.O. |
| Zero Balance | 43 % of R.O. |
| Excitation (VDC or VAC) | 18 V max |
| Bridge Resistance | 1000 kΩ nominal |
| Nonlinearity | 40.5 % of R.O. |
| Temp Shift Zero | 40.01 % of R.O.F (0.018 %/°C) |
| Temp Shift Span | 10.02 % of LOAD (0.036 %/°C) |
| Compensated Temperature | 60 °F to 160 °F |
| Operating Temperature | 0 °F to 160 °F |
| Weight | 0.7 g |
| Deflection | 0.005 mm nominal |
| Cover Material | Aluminum, red anodized |
| Cable | #28 AWG, 4‑conductor, spiral shielded PVC, 10 ft |
The wiring code is +Excitation | -Excitation +Signal -Signal, with Red, Black, Green, White conductors and a floating shield.
The sensor has a rated output of 2 mV nominal.
It operates from 0 °F up to 160 °F.
