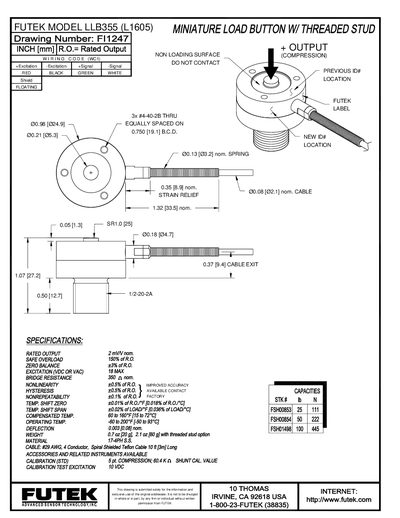

FUTEK MODEL LLB355 (L1605) Data Sheet
The FUTEK LLB355 (also referenced as L1605) is a miniature load button featuring a threaded stud for easy mounting. It provides a rated output of 2 mV/N and includes specifications for overload, zero balance, and temperature compensation.
The sheet lists physical characteristics such as a weight of 0.7 oz, construction material 17‑4PH stainless steel, and a 10‑ft spiral‑shielded Teflon cable. Calibration details, excitation voltage limits, and available accessories are also included.
Futek L1605 specifications
| Rated Output | 2 mV/N nominal |
|---|---|
| Safe Overload | 150 % of rated output |
| Excitation Voltage | Up to 18 V DC or AC |
| Operating Temperature | 60 °F to 200 °F (50 °C to 93 °C) |
| Weight | 0.7 oz (20 g) |
All Futek L1605 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the rated output of the LLB355 load button?
The rated output is 2 mV per newton (nominal).
What excitation voltage can be applied to the sensor?
The sensor can be excited with up to 18 V DC or AC.
What is the rated output of the LLB555 load cell?
The rated output is 2 mV per volt of excitation (2 mV/NV) nominal.
What safe overload rating does the LLB555 support?
The safe overload is rated at 150 % of the rated output.
What is the rated output of the Futek LLB455?
The rated output is 2 mV nominal.
What safe overload rating does the LLB455 support?
It can safely overload up to 150 % of its rated output.
