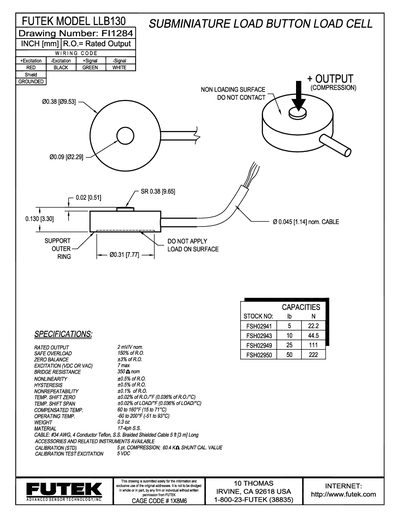

The LLB130 is a subminiature load button load cell designed for compression loading on non‑loading surfaces. It features a four‑wire configuration with red (+Excitation), black (‑Excitation), green (+Signal), and white (‑Signal) connections, plus a grounded shield.
Key performance figures include a 2 mV/V nominal output, 150 % safe overload, and temperature compensation from –60 °F to 200 °F. The cell is built from 17‑4PH stainless steel, weighs 0.3 oz, and ships with a 5‑ft #34 AWG shielded cable.
| Safe Overload | 150 % of rated output |
|---|---|
| Zero Balance | ±3 % of rated output |
| Excitation Voltage | Up to 7 VDC or VAC |
| Bridge Resistance | 350 MΩ nominal |
| Nonlinearity | 40.5 % of rated output |
| Hysteresis | 40.5 % of rated output |
| Non‑repeatability | 40.1 % of rated output |
| Temperature Shift (Zero) | 0.02 % of R.O./°F (0.036 % of R.O./°C) |
| Temperature Shift (Span) | 0.02 % of load/°F (0.036 % of load/°C) |
| Compensated Temperature Range | 60 °F to 160 °F (15 °C to 71 °C) |
| Operating Temperature Range | -60 °F to 200 °F (-51 °C to 93 °C) |
| Weight | 0.3 oz |
| Material | 17‑4PH stainless steel |
| Cable | #34 AWG, 4‑conductor Teflon, 5 ft shielded |
| Calibration Method | 5‑point compression, 60.4 kN shunt |
| Calibration Test Excitation | 5 VDC |
It can tolerate a safe overload of 150 % of its rated output.
The cell operates from –60 °F to 200 °F (‑51 °C to 93 °C).
It can be powered with up to 7 VDC or VAC.
