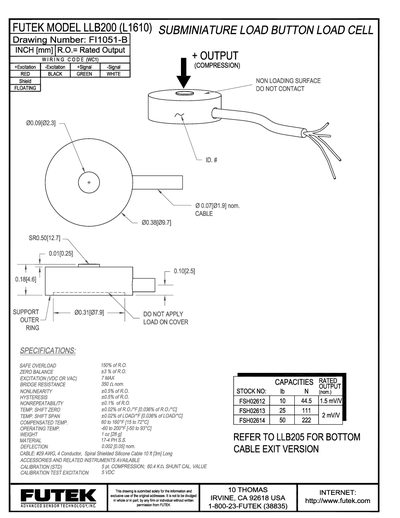

The LLB200 (L1610) is a subminiature load button load cell designed for precise force measurement. The sheet provides the drawing number, wiring diagram, and cable details for proper installation.
Key specifications include safe overload, excitation limits, temperature ranges, hysteresis, and non‑repeatability. Calibration procedures and available accessories are also listed.
| Safe overload | 150% of R.O. |
|---|---|
| Zero balance | 43% of R.O. |
| Excitation (VDC or VAC) | 7 V max |
| Hysteresis | 40.5% of R.O. |
| Non‑repeatability | 40.1% of R.O. |
| Temperature shift (zero) | 0.036% of R.O./°C |
| Temperature shift (span) | 0.036% of LOAD/°C |
| Compensated temperature range | 60 to 160 °F (15 to 72 °C) |
| Operating temperature | 60 to 200 °F (‑50 to 93 °C) |
| Deflection | 0.002 (0.05) nominal |
| Cable | #29 AWG, 4‑conductor, spiral shielded silicone, 10 ft (3 m) |
The wiring code (WC1) uses red for +Excitation, black for –Excitation, green for +Signal, and white for Signal, with a shield and floating connection.
The load cell can be excited with up to 7 V, either DC or AC.
It operates from 60 °F to 200 °F (‑50 °C to 93 °C).
