This document describes the features and characteristics of FUTEK MODEL LLB350 (L16010) product, including improved accuracy, non-loading surface contact with the factory, and no contact with FUTEK label.

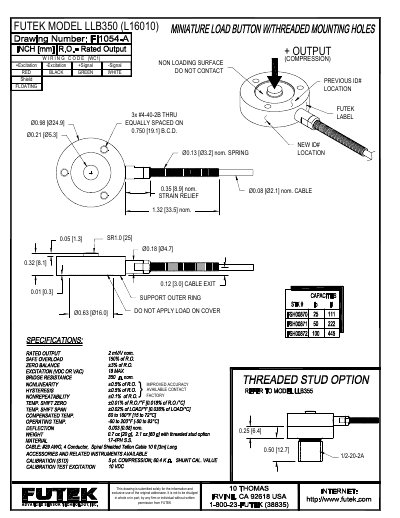

The LLB350 (L16010) is a pressure sensor from Futek designed for precise measurement in non‑loading surface applications. The sheet includes wiring instructions, mechanical dimensions, and handling precautions.
Key information includes the wiring color code (RED/BLACK for excitation, GREEN for signal, WHITE for shield), cable exit diameter, spring dimensions, and a reminder not to apply load on the sensor cover. The document is intended for the original recipient and must not be disclosed without permission. This manual is written in Chinese.
| Wiring colors | Excitation – RED/BLACK, Signal – GREEN, Shield – WHITE |
|---|---|
| Cable exit diameter | Ø0.13 mm |
| Spring outer diameter | Ø0.08 mm |
The excitation wires are RED and BLACK, the signal wire is GREEN, and the shield is WHITE.
The cable exit diameter is Ø0.13 mm.
No, the document states "DO NOT APPLY LOAD ON COVERS".
The model number is LLB350 (L16010).
