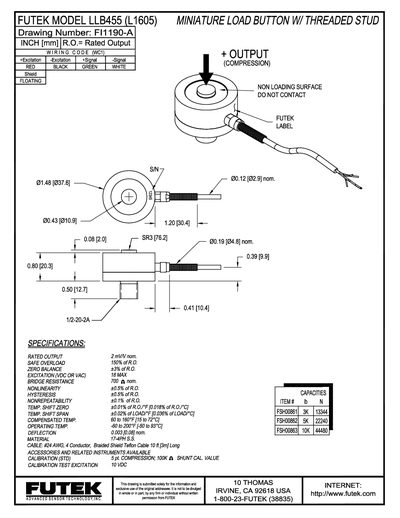

FUTEK MODEL LLB450(L1605) Data Sheet(1)
The Futek LLB455 (L1605) miniature load button is a compact sensor with a threaded stud for easy mounting. The sheet includes wiring codes, output polarity, and a diagram of the sensor's connections, as well as a note on the non‑loading surface.
Key specifications such as rated output, safe overload, excitation voltage, bridge resistance, temperature limits, and material construction are listed, along with recommended cable type and available accessories for calibration and integration.
Futek LLB450 specifications
| Rated Output | 2 mV nom. |
|---|---|
| Safe Overload | 150 % of R.O. |
| Zero Balance | 43 % of R.O. |
| Excitation (VDC or VAC) | 18 MAX |
| Bridge Resistance | 700 Ω nom. |
| Nonlinearity | 40.5 % of R.O. |
| Hysteresis | 40.5 % of R.O. |
| Nonrepeatability | 40.1 % of R.O. |
| Compensated Temperature Range | 60 °F to 160 °F (15 °C to 72 °C) |
| Deflection | 0.003 % (0.08 % nominal) |
| Material | 17‑4PH 8.8 |
All Futek LLB450 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the rated output of the Futek LLB455?
The rated output is 2 mV nominal.
What safe overload rating does the LLB455 support?
It can safely overload up to 150 % of its rated output.
What is the rated output of the LLB450 sensor?
The rated output is 2 mV nominal.
From: Futek LLB450 (L16030) Miniature Load Button Data Sheet
What is the maximum excitation voltage for the sensor?
The sensor can be excited with up to 18 V, either DC or AC.
From: Futek LLB450 (L16030) Miniature Load Button Data Sheet
What is the rated output of the Futek LLB455?
The rated output is 2 mV/V nominal.
What safe overload rating does the LLB455 have?
It can tolerate a safe overload of 150 % of its rated output.
