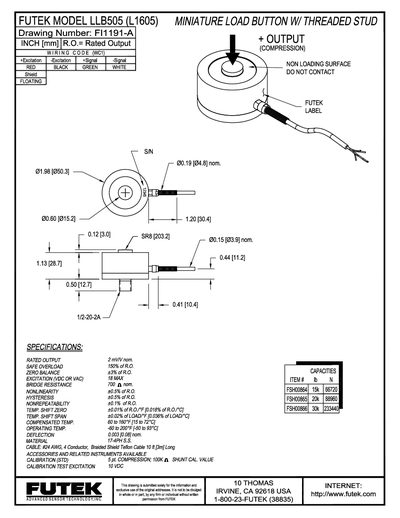

The LLB505 is a miniature load button with a threaded stud, designed for precise force measurement. The sheet includes the wiring code (WC1) showing excitation and signal connections with color‑coded leads and a floating shield.
Key specifications such as rated output (2 mV/V), safe overload (150 % of R.O.), temperature ranges, bridge resistance, and material details are listed, along with optional accessories and calibration information.
| Rated Output | 2 mV/V nominal |
|---|---|
| Safe Overload | 150 % of R.O. |
| Zero Balance | 43 % of R.O. |
| Excitation Voltage (max) | 18 V DC or AC |
| Bridge Resistance | 700 Ω nominal |
| Nonlinearity | 40.5 % of R.O. |
| Hysteresis | 10.5 % of R.O. |
| Operating Temperature | ~60 °F to 200 °F (‑50 °C to 93 °C) |
| Deflection | 0.003 in (0.08 mm) nominal |
| Cable | #24 AWG, 4‑conductor braided shield Teflon, 10 ft (3 m) |
The wiring code (WC1) uses +Excitation, -Excitation, +Signal, -Signal with RED, BLACK, GREEN, WHITE leads, a shield, and a floating connection.
The rated output is 2 mV/V nominal.
The sensor can be excited with up to 18 V DC or AC.
It operates from approximately 60 °F to 200 °F (‑50 °C to 93 °C).
