The document provides information about the FUTEK LLB450 model outer ring support, which offers improved accuracy and higher precision.

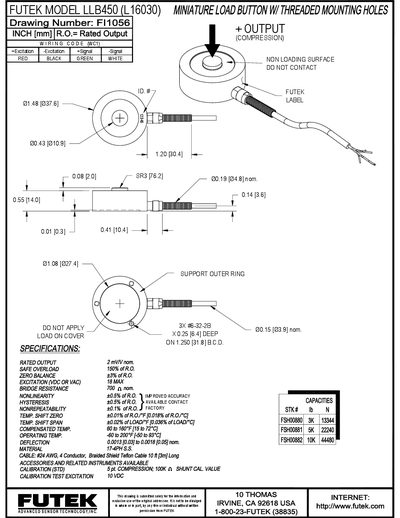

The LLB450 (L16030) is a miniature load button with threaded mounting holes, designed for precise force measurement. It features a rated output of 2 mV, safe overload capacity of 150 % of rated output, and a zero balance of 43 % of rated output.
The data sheet lists electrical specifications such as 18 V maximum excitation, 700 Ω bridge resistance, and detailed temperature compensation. It also includes wiring code, recommended #24 AWG braided‑shield Teflon cable, and available accessories for calibration and shunt calibration.
| Rated Output | 2 mV nominal |
|---|---|
| Safe Overload | 150 % of rated output |
| Zero Balance | 43 % of rated output |
| Excitation Voltage | 18 V max (DC or AC) |
| Bridge Resistance | 700 Ω nominal |
| Nonlinearity | 20.5 % of rated output |
| Hysteresis | ≤0.5 % of rated output |
| Operating Temperature | -60 to 200 °F (‑50 to 93 °C) |
| Compensated Temperature Range | 60 to 160 °F (15 to 72 °C) |
| Cable Recommendation | #24 AWG, 4‑conductor, braided‑shield Teflon cable, 10 ft (3 m) long |
The rated output is 2 mV nominal.
The sensor can be excited with up to 18 V, either DC or AC.
It operates from –60 °F to 200 °F (‑50 °C to 93 °C).
Use a #24 AWG, 4‑conductor, braided‑shield Teflon cable, 10 ft (3 m) long.
