The document describes the features and characteristics of a product, including dimensions, materials, and usage precautions.

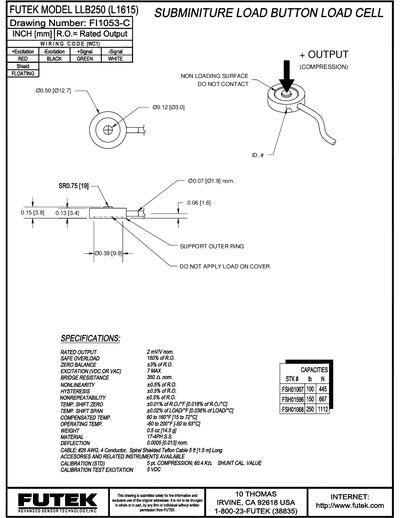

The Futek LLB250(L1615) is a sub‑miniature load button load cell designed for precise force measurement. The sheet provides the wiring diagram, cable type, and notes on handling the sensor, including a warning not to load the cover.
Key specifications include a rated output of 2 mV/V, safe overload of 150 % of rated output, and temperature‑compensated operation from –60 °F to 200 °F. Mechanical details such as weight, material, and deflection are also listed, along with calibration and accessory information.
| Safe Overload | 150 % of R.O. |
|---|---|
| Zero Balance | 13 % of R.O. |
| Excitation (VDC or VAC) | 7 V max |
| Nonlinearity | ≤0.5 % of R.O. |
| Hysteresis | ≤0.5 % of R.O. |
| Nonrepeatability | ≤0.5 % of R.O. |
| Temp. Shift Span | ≤0.02 % of LOAD/F (0.036 % of LOAD/°C) |
| Operating Temperature Range | -60 °F to 200 °F (-50 °C to 93 °C) |
| Material | 17‑4PH 8.8 |
| Deflection | 0.0005 (0.013) nominal |
| Cable | #29 AWG, 4‑conductor, spiral‑shielded Teflon, 5 ft (1.5 m) |
The safe overload is 150 % of the rated output.
It operates from –60 °F to 200 °F (–50 °C to 93 °C).
A #29 AWG, 4‑conductor, spiral‑shielded Teflon cable, 5 ft (1.5 m) long is supplied.
