This document is the wiring diagram of LMM500

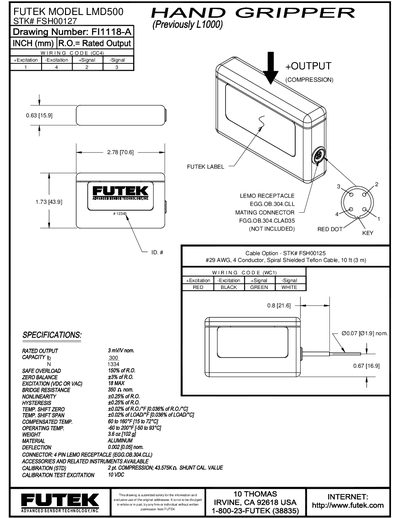

This data sheet describes the Futek LMD500 load cell, including its wiring code, rated output, and full technical specifications. It lists the connector type, cable options, and physical characteristics such as weight and material.
The document also notes available accessories, calibration procedures, and contact information for Futek. It is intended for engineers and technicians who need detailed performance data and installation guidance for the LMD500 sensor.
| Rated Output | 3 mV/V nominal |
|---|---|
| Capacity | Ib 300 |
| Safe Overload | 150 % of R.O. |
| Zero Balance | ±3 % of R.O. |
| Excitation Voltage | Up to 18 V (DC or AC) |
| Bridge Resistance | 350 Ω nominal |
| Nonlinearity | 10.25 % of R.O. |
| Hysteresis | ±0.25 % of R.O. |
| Operating Temperature | -60 °F to 200 °F (‑50 °C to 93 °C) |
| Connector | 4‑pin LEMO receptacle (EGG.0B.304.CLL) |
The LMD500 has a rated output of 3 mV/V nominal.
The sensor can be excited with up to 18 V, either DC or AC.
It operates from –60 °F to 200 °F (‑50 °C to 93 °C).
The device uses a 4‑pin LEMO receptacle (part number EGG.0B.304.CLL).
