This document is the instruction manual for FSH02710,FSH02709,FSH02708 products, which introduces the product model, size, specification, function features, usage method and other information.

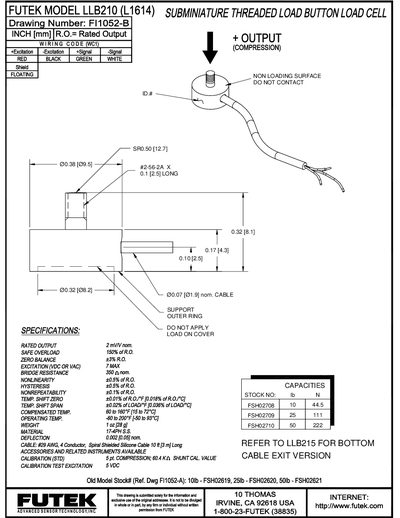

The LLB210 is a subminiature threaded load button load cell designed for compression loading applications. It features a compact form factor with a floating non‑loading surface and a 4‑wire wiring configuration (excitation+, excitation‑, signal+, signal‑). The device is supplied with a spiral‑shielded silicone cable and optional accessories.
Key specifications include a rated output of 2 mV/V, safe overload of 150 % of rated output, excitation voltage up to 7 V (DC or AC), bridge resistance of 350 Ω, and operating temperature from –60 °F to 200 °F. The load cell is constructed from 17‑4PH stainless steel and weighs approximately 1 oz (28 g).
| Rated Output | 2 mV/V nominal |
|---|---|
| Safe Overload | 150 % of rated output |
| Zero Balance | 23 % of rated output |
| Excitation Voltage | Up to 7 V DC or AC |
| Bridge Resistance | 350 Ω nominal |
| Nonlinearity | 40.5 % of rated output |
| Hysteresis | 20.5 % of rated output |
| Non‑repeatability | 40.1 % of rated output |
| Temperature Compensation (Zero Shift) | 0.018 % of R.O./°C |
| Operating Temperature | -60 °F to 200 °F (‑50 °C to 93 °C) |
| Weight | 1 oz (28 g) |
| Cable | #29 AWG, 4‑conductor, spiral‑shielded silicone, 10 ft (3 m) long |
The LLB210 has a rated output of 2 mV/V nominal.
The load cell can be excited with up to 7 V DC or AC.
It operates from –60 °F to 200 °F (‑50 °C to 93 °C).
A #29 AWG, 4‑conductor, spiral‑shielded silicone cable 10 ft (3 m) long is provided.
