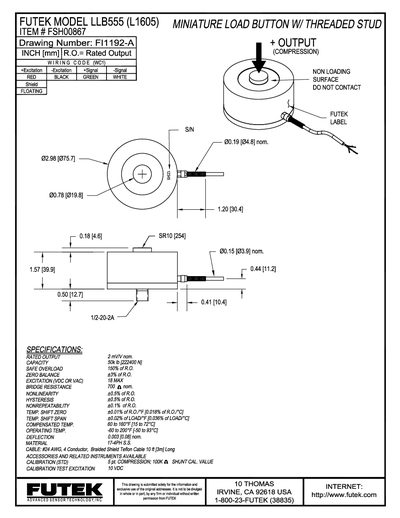

This data sheet describes the FUTEK LLB555 (L1605) load cell, including its electrical characteristics, mechanical construction, and available accessories. It contains the wiring code, rated output, bridge resistance, and temperature compensation data needed for proper integration.
Key specifications such as rated output (2 mV/NV nominal), safe overload (150 % of rated output), bridge resistance (700 Ω nominal), and operating temperature range (60 °F to 160 °F) are listed, along with material details and cable options. Calibration procedures and accessory options are also provided.
| Rated Output | 2 mV/NV nominal |
|---|---|
| Safe Overload | 150 % of rated output |
| Zero Balance | 13 % of rated output |
| Bridge Resistance | 700 Ω nominal |
| Nonlinearity | 40.5 % of rated output |
| Hysteresis | 20.5 % of rated output |
| Nonrepeatability | 20.1 % of rated output |
| Temperature Shift (Zero) | 40.01 % of R.O./°F (0.018 % of R.O./°C) |
| Temperature Shift (Span) | 20.02 % of LOAD/°F (0.036 % of LOAD/°C) |
| Operating Temperature | 60 °F to 160 °F (15 °C to 72 °C) |
| Compensated Temperature Range | -60 °F to 200 °F (-50 °C to 93 °C) |
| Deflection Sensitivity | 0.003 % (0.08 % nominal) |
| Material | 17‑4PH stainless steel |
| Cable | #24 AWG, 4‑conductor braided shield Teflon cable, 10 ft (3 m) long |
The rated output is 2 mV per volt of excitation (2 mV/NV) nominal.
The safe overload is rated at 150 % of the rated output.
The bridge resistance is 700 Ω nominal.
It operates from 60 °F to 160 °F (15 °C to 72 °C).
