The LSB453 is a stainless‑steel S‑beam load cell designed for both tension and compression applications. It offers a 5 kN (5000 lb) capacity, 150 % overload rating, and a nominal output of 3 mV/V (matched output optional). The device operates from –40 °F to 200 °F (‑40 °C to 93 °C) and features a 17‑4 PHSS material construction.

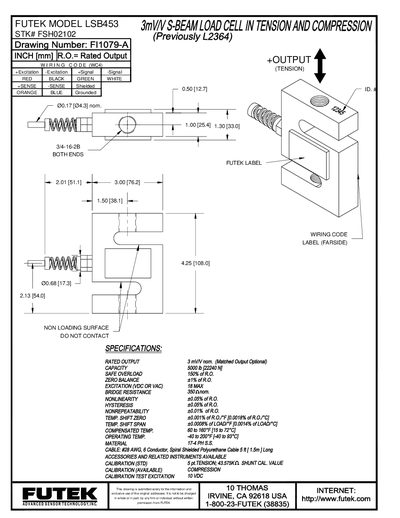

The data sheet includes wiring diagrams (red, black, green, white, orange, blue conductors), a shielded 6‑conductor cable, and specifications such as bridge resistance (350 Ω), excitation up to 18 V, and detailed temperature shift values. Calibration accessories and related instruments are available from Futek.
| Rated Output | 3 mV/V nominal (matched output optional) |
|---|---|
| Capacity | 5000 lb (22240 N) |
| Safe Overload | 150 % of rated output |
| Bridge Resistance | 350 Ω nominal |
| Operating Temperature | -40 °F to 200 °F (‑40 °C to 93 °C) |
| Material | 17‑4 PHSS stainless steel |
The LSB453 can measure up to 5000 lb (22240 N) of force.
It provides a nominal output of 3 mV/V, with a matched output option available.
It operates from –40 °F to 200 °F (‑40 °C to 93 °C).
