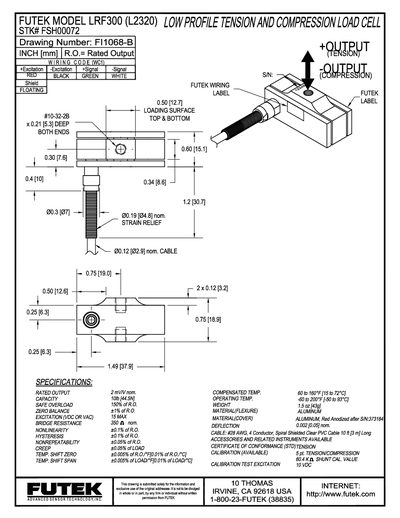

The LRF300 is a low‑profile load cell designed for tension and compression measurements. This handbook outlines its mechanical dimensions, wiring configuration, and available accessories.
Key specifications include a 2 mV/V rated output, 10 lb capacity, operating temperature from –60 °F to 200 °F, and a safe overload rating of 150 % of rated output. Calibration options, cable details, and material construction are also described.
| Rated Output | 2 mV/V nominal |
|---|---|
| Safe Overload | 150 % of rated output |
| Zero Balance | ±1 % of rated output |
| Flexure Material | Aluminum |
| Excitation Voltage | 15 VDC or VAC max |
| Bridge Resistance | 350 Ω nominal |
| Deflection | 0.002 in (0.05 mm) nominal |
The rated output is 2 mV/V nominal.
Calibration is available for 5‑point tension/compression, with a 60.4 kΩ shunt calibration value.
