This file is a parts list for the FUTEK LSB400 product

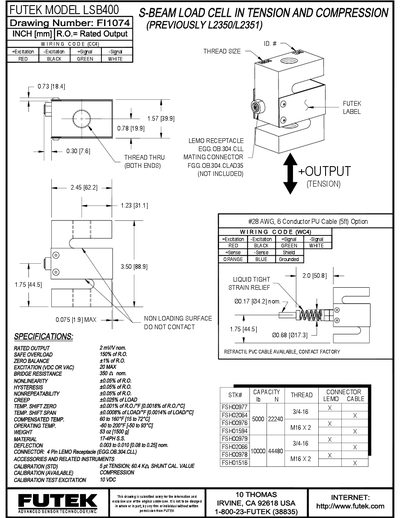

This one‑page datasheet describes the Futek LSB400 beam load cell, including its drawing number, wiring configurations (CC4 and WC4), and available accessories. It lists the connector type (4‑pin LEMO receptacle) and cable options for both tension and compression use.
Key specifications such as excitation voltage, bridge resistance, temperature ranges, weight, material, and performance metrics (nonlinearity, hysteresis, creep, etc.) are provided, along with calibration information and zero‑balance details.
| Excitation (VDC or VAC) max | 20 V |
|---|---|
| Bridge Resistance | 350 Ω nominal |
| Hysteresis | 0.05% of R₀ |
| Nonrepeatability | 0.05% of R₀ |
| Creep | 0.025% of load |
| Temperature shift zero | 0.001% of R₀/°F (0.0018% of R₀/°C) |
| Temperature shift span | 0.0008% of load/°F (0.0014% of load/°C) |
| Compensated temperature range | 60 to 160 °F (15 to 72 °C) |
| Operating temperature range | -60 to 200 °F (‑50 to 93 °C) |
| Weight | 53 oz (1500 g) |
| Material | 17‑4PH 8.8 |
| Deflection | 0.003 to 0.010 (0.08 to 0.25) nominal |
| Connector | 4‑pin LEMO Receptacle (EGG.0B.304.CLL) |
| Zero balance | 41% of RO |
The LSB400 can be excited with up to 20 V DC or AC.
The bridge resistance is 350 Ω nominal.
It operates from –60 °F (‑50 °C) up to 200 °F (93 °C).
It uses a 4‑pin LEMO receptacle (part number EGG.0B.304.CLL).
