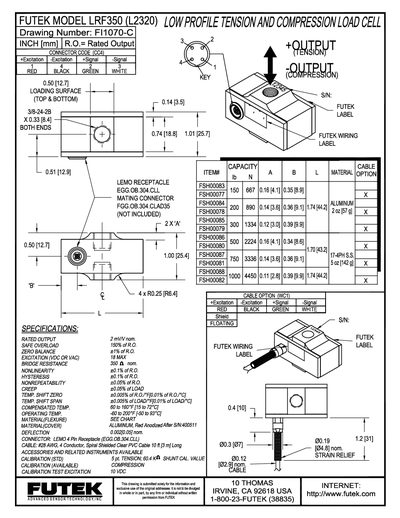

The Futek LRF350 is a low‑profile load cell designed for both tension and compression measurements. It features a compact design (L2320) and is supplied with a LEMO 4‑pin connector and optional shielded cable.
The sheet lists key electrical specifications such as a 2 mV/V rated output, 150 % safe overload, and temperature‑compensated performance from –60 °F to 200 °F. Wiring diagrams, cable options, and available accessories are also included, along with calibration details for tension and compression applications.
| Safe Overload | 150 % of rated output |
|---|---|
| Zero Balance | 21 % of rated output |
| Excitation Voltage | Up to 18 VDC or VAC |
| Non‑repeatability | 0.05 % of rated output |
| Operating Temperature | -60 °F to 200 °F (‑50 °C to 93 °C) |
| Compensated Temperature Range | 60 °F to 160 °F (15 °C to 72 °C) |
| Cable | #28 AWG, 4‑conductor spiral‑shielded PVC, 10 ft |
It can tolerate a safe overload of 150 % of its rated output.
It operates from –60 °F to 200 °F (‑50 °C to 93 °C).
