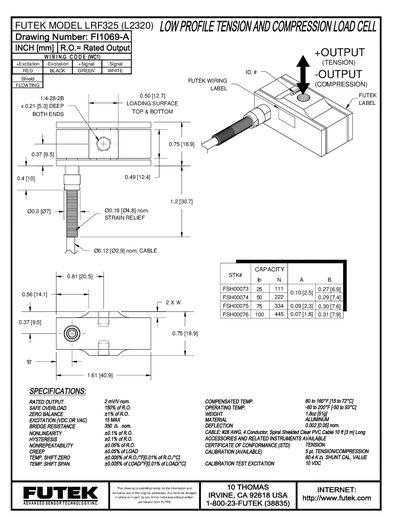

This document is the part drawing of FUTEK LRF325 (L2320), which includes output (tension) terminal, input (compression) terminal, cable, signal, excitation etc.
The Futek LRF325 (L2320) is a low‑profile load cell designed for both tension and compression measurements. It features a compact aluminum body with a deep‑loading surface and standard wiring terminals for excitation and signal connections.
The datasheet lists key performance figures such as a 2 mV/V rated output, a safe overload of 150 % of rated output, and operating temperature limits from –60 °F to 200 °F. Wiring codes, cable type (#28 AWG, 4‑conductor shielded PVC), and material specifications are also provided, along with calibration and certification information.
| Rated Output | 2 mV/V nominal |
|---|---|
| Compensated Temperature Range | 60 °F to 160 °F (15 °C to 72 °C) |
| Safe Overload | 150 % of rated output |
| Zero Balance | 1 % of rated output (weight 1.602 g) |
| Excitation Voltage | Up to 15 V DC or AC |
| Material | Aluminum |
| Bridge Resistance | 350.4 Ω nominal |
| Deflection | 0.002 in (0.05 mm) nominal |
| Nonlinearity | 0.1 % of rated output |
| Hysteresis | 0.1 % of rated output |
| Non‑repeatability | 0.05 % of rated output |
| Creep | 0.05 % of load |
| Cable Type | #28 AWG, 4‑conductor, spiral‑shielded PVC, 10 ft |
The LRF325 has a rated output of 2 mV/V nominal.
The load cell can be powered with up to 15 V DC or AC.
The device can tolerate a safe overload of 150 % of its rated output.
The load cell body is made of aluminum.
