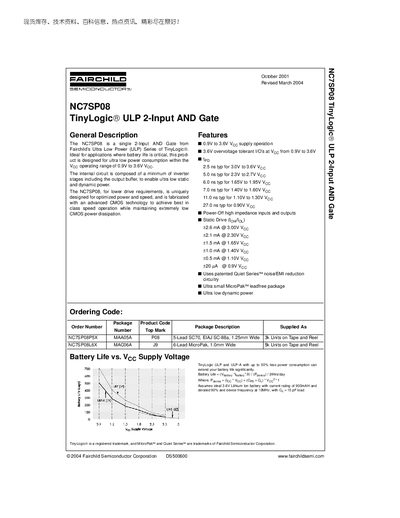

The NC7SP08 is a single 2-Input AND Gate from Fairchild's Ultra Low Power (ULP) Series of TinyLogic. Ideal for applications where battery life is critical, this product is designed for ultra low power consumption within the VCC operating range of 0.9V to 3.6V VCC. The internal circuit is composed of a minimum of inverter stages including the output buffer, to enable ultra low static and dynamic power. The NC7SP08, for lower drive requirements, is uniquely designed for optimized power and speed, and is fabricated with an advanced CMOS technology to achieve best in class speed operation while maintaining extremely low CMOS power dissipation.
The NC7SP08 is a single 2‑input AND gate from Fairchild's Ultra Low Power (ULP) TinyLogic series. It operates from 0.9 V to 3.6 V and is optimized for ultra‑low static and dynamic power, making it suitable for battery‑critical applications. The device features a minimal inverter stack, over‑voltage‑tolerant I/Os, and a patented Quiet Series noise‑reduction circuit.
The part is offered in two lead‑frame packages: a 5‑lead SC70 (MAA05A) and a 6‑lead MicroPak (MACO6A). Detailed absolute‑maximum ratings, DC and AC electrical characteristics, propagation delay tables, and tape‑and‑reel handling specifications are provided, along with physical dimensions and a life‑support policy disclaimer.
| Supply Voltage Range | 0.9 V to 3.6 V |
|---|---|
| Typical Propagation Delay (3.0 V‑3.6 V) | 2.5 ns typ |
| Quiescent Supply Current (3.0 V) | 42.6 mA |
| Input Leakage Current | 0.90 pA to 8.60 pA |
| Package Types | 5‑Lead SC70 (MAA05A) / 6‑Lead MicroPak (MACO6A) |
The device operates from 0.9 V up to 3.6 V.
Typical propagation delay is 2.5 ns when powered between 3.0 V and 3.6 V.
It draws about 42.6 mA at a 3.0 V supply.
It is offered in a 5‑lead SC70 (MAA05A) and a 6‑lead MicroPak (MACO6A) package.
