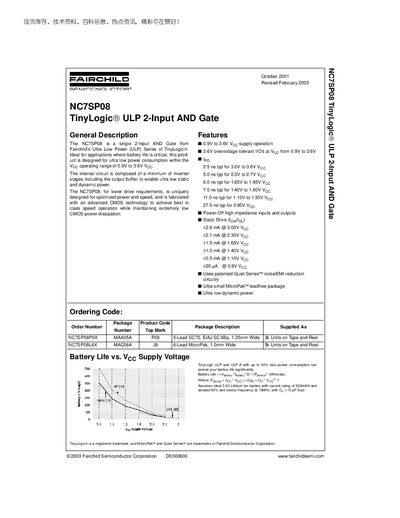

The document introduces the NC7SP08 TinyLogic ULP 2-Input AND Gate product from Fairchild Semiconductor Corporation. This product is a single 2-input AND gate, ideal for applications where battery life is critical. Features include ultra-low power consumption, operating voltage range of 0.9V to 3.6V, ultra-low static and dynamic power, static drive current of ±2.6 mA to ±20 µA, etc.
The NC7SP08 is a single 2‑input AND gate from Fairchild's Ultra Low Power (ULP) TinyLogic series. It operates from 0.9 V to 3.6 V supply voltage and is designed for battery‑powered applications where power consumption must be minimal.
The document provides electrical characteristics, pin descriptions, package options (5‑lead SC70 and 6‑lead MicroPak), tape‑and‑reel handling details, and a life‑support policy disclaimer.
| Supply Voltage Range | 0.9 V to 3.6 V |
|---|---|
| Typical Propagation Delay (3.0 V‑3.6 V) | 2.5 ns typ |
| Static Power Consumption @ 3.0 V | 42.6 mA |
| Package Options | 5‑lead SC70 (MAA05A) and 6‑lead MicroPak (MACO6A) |
| Maximum Input/Output Voltage | -0.5 V to +4.6 V |
The device operates from 0.9 V up to 3.6 V supply voltage.
Typical propagation delay is about 2.5 ns when powered between 3.0 V and 3.6 V.
It is offered in a 5‑lead SC70 (MAA05A) and a 6‑lead MicroPak (MACO6A) package.
Yes, the I/O pins are tolerant up to 3.6 V even when the supply is as low as 0.9 V.
