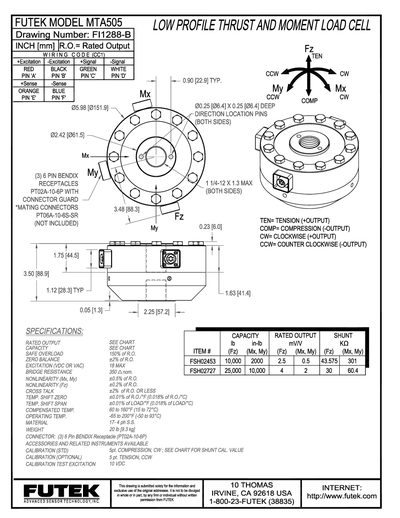

The MTASOS is a low‑profile thrust and moment load cell designed for tension, compression, clockwise and counter‑clockwise loading. The drawing includes a wiring code with six pins (Excitation+, Excitation‑, Signal+, Signal‑, Sense+, Sense‑) and specifies the connector type as a 6‑pin BENDIX receptacle.
Key specifications include a safe overload of 150% of rated output, zero balance of 42% of rated output, excitation voltage up to 18 VDC/VAC, bridge resistance of 350 Ω nominal, non‑linearity of about 40 % of rated output, cross‑talk ≤42% of rated output, and an operating temperature range of 65 °F to 200 °F (‑50 °C to 93 °C). The load cell is constructed from 17‑4 stainless steel, weighs 20 lb (9.3 kg), and is compatible with optional calibration accessories.
| Safe Overload | 150% of rated output |
|---|---|
| Zero Balance | 42% of rated output |
| Excitation Voltage | Up to 18 VDC or VAC |
| Bridge Resistance | 350 Ω nominal |
| Nonlinearity (Mx, My) | 40.5% of rated output |
| Nonlinearity (Fz) | 40.2% of rated output |
| Cross Talk | ≤42% of rated output |
| Temperature Shift (Zero) | 0.018% of R.O./°C |
| Operating Temperature | 65 °F to 200 °F (‑50 °C to 93 °C) |
| Material | 17‑4 stainless steel |
| Weight | 20 lb (9.3 kg) |
| Connector | 6‑pin BENDIX receptacle (PTO2A-10-6P) |
The MTASOS load cell can tolerate a safe overload of 150 % of its rated output.
It operates with an excitation voltage of up to 18 VDC or VAC.
The load cell uses a 6‑pin BENDIX receptacle (part number PTO2A-10-6P).
