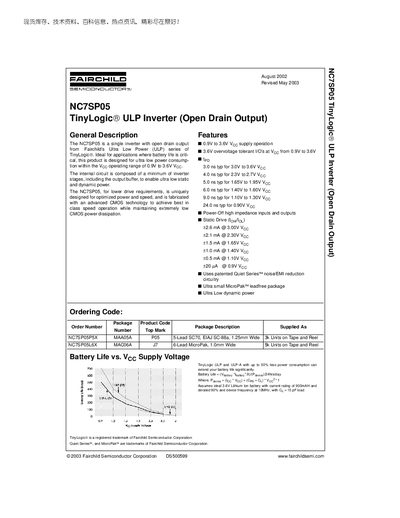

This document describes the features and characteristics of the NC7SP05 TinyLogic ULP inverter with open drain output from Fairchild Semiconductor Corporation. This product is designed for applications where battery life is critical and operates within the VCC range of 0.9V to 3.6V. It offers ultra low static and dynamic power consumption and utilizes advanced CMOS technology for best-in-class speed operation and extremely low CMOS power dissipation.
The NC7SP05 is a single inverter from Fairchild’s TinyLogic Ultra‑Low‑Power (ULP) series, offering an open‑drain output that operates from 0.9 V to 3.6 V supply voltage. It provides low static and dynamic power consumption, making it suitable for battery‑powered applications.
The document includes electrical characteristics, pin descriptions, package options (5‑Lead SC70 and 6‑Lead MicroPak), tape‑and‑reel handling specifications, and mechanical dimensions. It also contains recommended operating conditions and absolute maximum ratings for safe use.
| Supply Voltage (Vcc) range | 0.9 V to 3.6 V |
|---|---|
| Static Drive Current @ 3.0 V Voc | 42.6 mA |
| Typical Propagation Delay @ 3.0 V to 3.6 V Vcc | 3.0 ns typ |
| Storage Temperature Range | -65 °C to +150 °C |
The NC7SP05 operates from 0.9 V up to 3.6 V supply voltage.
The typical propagation delay is 3.0 ns when powered between 3.0 V and 3.6 V.
It can source up to 42.6 mA at a 3.0 V output voltage.
