NC7SP04 is a single inverter from Fairchild's Ultra Low Power (ULP) Series of TinyLogic
The NC7SP04 is a single inverter from Fairchild’s Ultra Low Power (ULP) TinyLogic series, designed for applications where battery life is critical. It operates from 0.9 V to 3.6 V and offers ultra‑low static and dynamic power consumption.

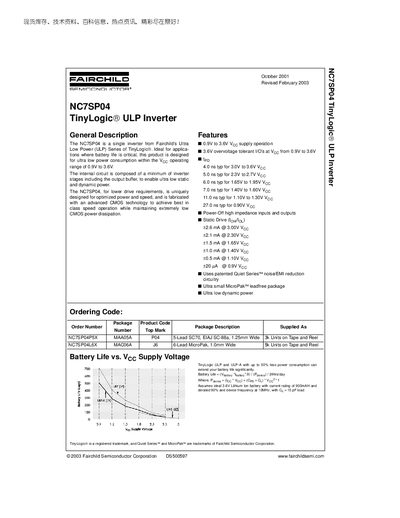

The document lists detailed electrical parameters, propagation delays, current limits, package options (5‑lead SC70 and 6‑lead MicroPak), and tape‑and‑reel handling specifications, enabling designers to integrate the device into low‑power circuits.
| Supply Voltage Range | 0.9 V to 3.6 V |
|---|---|
| Typical Propagation Delay (3.0 V‑3.6 V) | 4.0 ns typ |
| Quiescent Supply Current | 0.90 µA to 8.60 µA |
| Input Capacitance | 2.0 pF |
| Output Capacitance | 4.0 pF |
| Maximum Output Current (3.0 V Vcc) | 42.6 mA |
The device operates from 0.9 V to 3.6 V supply voltage.
Typical propagation delay is 4.0 ns when Vcc is between 3.0 V and 3.6 V.
The maximum output current is 42.6 mA at a 3.0 V supply.
