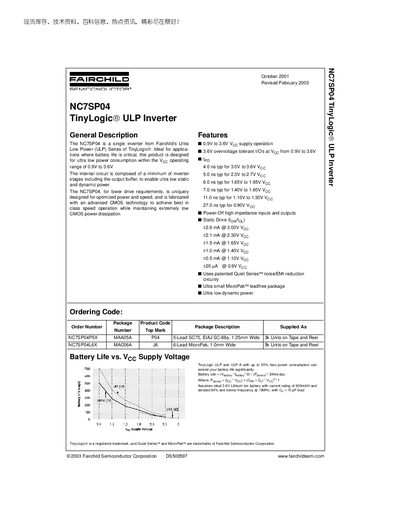

NC7SP04 TinyLogic ULP Inverter is a low power crystal from Fairchild. It works within the voltage range of 0.9V to 3.6V and can be used in battery powered applications.
The NC7SP04 is a single inverter from Fairchild’s Ultra Low Power (ULP) TinyLogic series, designed for applications where battery life is critical. It operates from 0.9 V to 3.6 V Vcc and features ultra‑low static and dynamic power consumption, over‑voltage tolerant I/Os, and a patented Quiet Series noise‑reduction circuit.
The document lists absolute maximum ratings, DC and AC electrical characteristics, pin assignments for SC70 and MicroPak packages, and mechanical data such as tape‑and‑reel specifications and physical dimensions. It also includes ordering codes, battery‑life curves, and a life‑support policy disclaimer.
| Supply Voltage (Vcc) range | 0.9 V to 3.6 V |
|---|---|
| Typical propagation delay (3.0 V–3.6 V) | 4.0 ns typ |
| Package (SC70) | 5‑Lead SC70, EIAJ SC‑88a, 1.25 mm wide |
| Package (MicroPak) | 6‑Lead MicroPak, 1.0 mm wide |
The device operates from 0.9 V to 3.6 V Vcc.
Typical propagation delay is 4.0 ns at a supply of 3.0 V to 3.6 V.
Yes, it is 3.6 V over‑voltage tolerant on I/Os across the full Vcc range.
