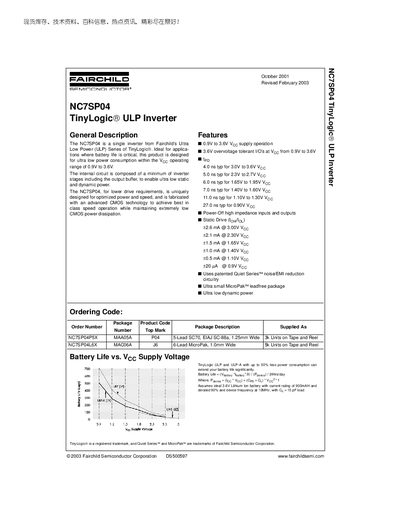

The NC7SP04 is a single inverter from Fairchild's Ultra Low Power (ULP) Series of TinyLogic. Ideal for applications where battery life is critical, this product is designed for ultra low power consumption within the VCC operating range of 0.9V to 3.6V. The internal circuit is composed of a minimum of inverter stages including the output buffer, to enable ultra low static and dynamic power. The NC7SP04, for lower drive requirements, is uniquely designed for optimized power and speed, and is fabricated with an advanced CMOS technology to achieve best in class speed operation while maintaining extremely low CMOS power dissipation.
The NC7SP04 is a single inverter from Fairchild’s Ultra Low Power (ULP) TinyLogic® series, designed for applications where battery life is critical. It operates from 0.9 V to 3.6 V Vcc and features ultra‑low static and dynamic power consumption.
The document includes pin assignments for SC70 and MicroPak packages, absolute maximum ratings, DC and AC electrical characteristics, propagation delay data, and tape‑and‑reel packaging specifications. It also contains a life‑support policy disclaimer and ordering information for the two package options.
| Supply Voltage (Vcc) range | 0.9 V to 3.6 V |
|---|---|
| Typical Propagation Delay (3.0 V–3.6 V) | 4.0 ns |
| Input Capacitance (C_in) | 0 pF to 2.0 pF |
| Output Capacitance (C_out) | 0 pF to 4.0 pF |
| Package types | 5‑Lead SC70 (MAA05A) and 6‑Lead MicroPak (MACO6A) |
The device operates from 0.9 V to 3.6 V Vcc.
Typical propagation delay is 4.0 ns for Vcc between 3.0 V and 3.6 V.
It is offered in a 5‑lead SC70 (MAA05A) and a 6‑lead MicroPak (MACO6A) package.
Yes, the I/Os are tolerant up to 3.6 V over‑voltage when Vcc is between 0.9 V and 3.6 V.
