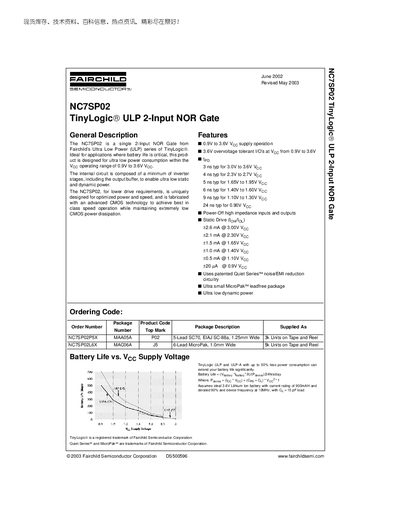

The NC7SP02 is a single 2-input NOR Gate from Fairchild's Ultra Low Power (ULP) series of TinyLogic. Ideal for applications where battery life is critical, this product is designed for ultra low power consumption within the VCC operating range of 0.9V to 3.6V VCC. The internal circuit is composed of a minimum of inverter stages, including the output buffer, to enable ultra low static and dynamic power. The NC7SP02, for lower drive requirements, is uniquely designed for optimized power and speed, and is fabricated with an advanced CMOS technology to achieve best in class speed operation while maintaining extremely low CMOS power dissipation.
The NC7SP02 is a 2‑input NOR gate from Fairchild's Ultra Low Power TinyLogic® series, designed for battery‑critical applications with supply voltages from 0.9 V to 3.6 V. The device features ultra‑low static and dynamic power, over‑voltage‑tolerant I/Os, and a Quiet Series™ noise‑reduction circuit.
The document lists detailed electrical characteristics (supply voltage, propagation delay, leakage currents), pin assignments for SC70 and MicroPak packages, mechanical dimensions, and tape‑and‑reel handling specifications. It also includes a life‑support policy disclaimer.
| Supply Voltage (VCC) | 0.9 V to 3.6 V |
|---|---|
| Typical Propagation Delay (3 V) | 3 ns typ |
| Storage Temperature Range | -65 °C to +150 °C |
The device operates from 0.9 V up to 3.6 V supply voltage.
At a 3 V supply the typical propagation delay is 3 ns.
