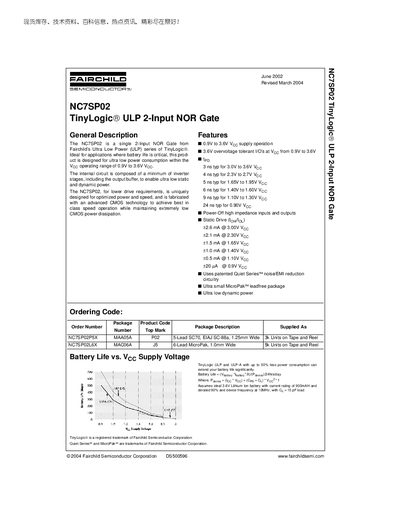

NC7SP02 TinyLogic Ultra Low Power 2-Input NOR Gate, ideal for applications where battery life is critical, suitable for 0.9V to 3.6V VCC supply range. The internal circuit is composed of the minimum number of inverter stages, including the output buffer, to enable ultra low static and dynamic power. NC7SP02 is uniquely designed for optimized power and speed, and is fabricated with an advanced CMOS technology to achieve best in class speed operation while maintaining extremely low CMOS power dissipation.
The NC7SP02 is a single 2‑input NOR gate from Fairchild's Ultra Low Power TinyLogic® series. It operates from 0.9 V to 3.6 V and is optimized for minimal static and dynamic power consumption, making it suitable for battery‑powered applications.
The document provides electrical characteristics, pin descriptions, mechanical dimensions, and tape‑and‑reel packaging information for both SC70 and MicroPak variants, along with absolute maximum ratings and a life‑support policy disclaimer.
| Supply Voltage Range | 0.9 V to 3.6 V |
|---|---|
| Typical Propagation Delay (3.0 V‑3.6 V) | 3 ns |
| Typical Propagation Delay (2.3 V‑2.7 V) | 4 ns |
| Input Leakage Current | 40 µA (typ) |
| Output Current (3.0 V) | 42.6 mA |
| Package Types | 5‑Lead SC70 (MAA05A) and 6‑Lead MicroPak (MACO6A) |
The device operates from 0.9 V up to 3.6 V.
Typical propagation delay is 3 ns when powered between 3.0 V and 3.6 V.
It is offered in a 5‑lead SC70 (MAA05A) and a 6‑lead MicroPak (MACO6A) package.
No, Fairchild states the product is not authorized for use as a critical component in life‑support systems without written approval.
