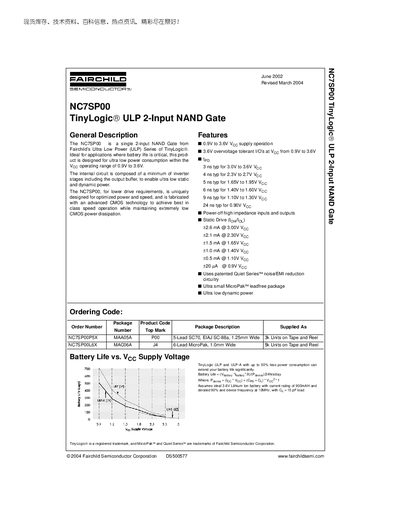

The NC7SP00 is a single 2-input NAND Gate from Fairchild’s Ultra Low Power (ULP) Series of TinyLogic. Ideal for applications where battery life is critical, this prod- uct is designed for ultra low power consumption within the VCC operating range of 0.9V to 3.6V. The internal circuit is composed of a minimum of inverter stages including the output buffer, to enable ultra low static and dynamic power. The NC7SP00, for lower drive requirements, is uniquely designed for optimized power and speed, and is fabricated with an advanced CMOS technology to achieve best in class speed operation while maintaining extremely low CMOS power dissipation.
The NC7SP00 is a single 2‑input NAND gate from Fairchild's Ultra Low Power (ULP) TinyLogic series. It operates from 0.9 V to 3.6 V and is optimized for minimal static and dynamic power consumption, making it suitable for battery‑powered applications.
The document provides electrical characteristics, pin assignments, package options (5‑lead SC70 and 6‑lead MicroPak), and mechanical dimensions, along with recommended operating conditions and absolute maximum ratings.
| Supply Voltage Range | 0.9 V to 3.6 V |
|---|---|
| Typical Propagation Delay (3.0 V–3.6 V) | 3 ns typ |
| Typical Output Current @ 3.0 V | 42.6 mA |
| Package Type (SC70) | 5‑Lead SC70, EIAJ SC‑88a, 1.25 mm wide |
| Package Type (MicroPak) | 6‑Lead MicroPak, 1.0 mm wide |
The device operates from 0.9 V to 3.6 V.
Typical propagation delay is 3 ns at 3.0 V to 3.6 V.
It is offered in a 5‑lead SC70 (MAA05A) and a 6‑lead MicroPak (MACO6A) package.
The typical output current is 42.6 mA at 3.0 V.
