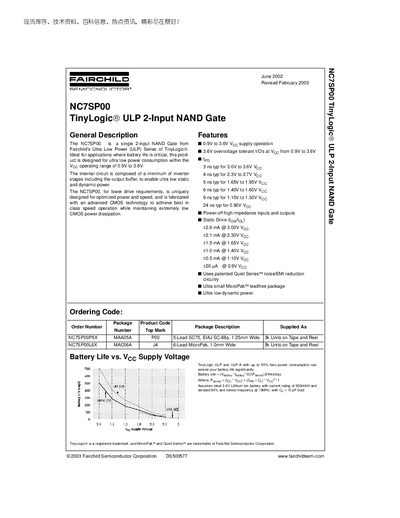

The NC7SP00 is a single 2-input NAND Gate from Fairchild’s Ultra Low Power (ULP) Series of TinyLogic. Ideal for applications where battery life is critical, this prod- uct is designed for ultra low power consumption within the VCC operating range of 0.9V to 3.6V.
The NC7SP00 is a single 2‑input NAND gate from Fairchild's Ultra Low Power (ULP) TinyLogic series. It is designed for battery‑critical applications, operating from 0.9 V to 3.6 V and offering ultra‑low static and dynamic power consumption.
Key specifications include typical propagation delays ranging from 3 ns to 24 ns depending on supply voltage, input and output leakage currents under 50 mA, and operation over a temperature range of –65 °C to +150 °C. The device is offered in 5‑lead SC70 (MAA05A) and 6‑lead MicroPak (MACO6A) packages with detailed tape‑and‑reel handling information.
| Supply Voltage Range | 0.9 V to 3.6 V |
|---|---|
| Typical Propagation Delay (3.0 V–3.6 V) | 3 ns typ |
| Typical Propagation Delay (2.3 V–2.7 V) | 4 ns typ |
| Typical Propagation Delay (1.65 V–1.95 V) | 5 ns typ |
| Input Diode Current (Absolute Max) | < +50 mA |
| Output Source/Sink Current (Absolute Max) | +50 mA |
| Operating Temperature (Free Air) | 40 °C to +85 °C |
| Storage Temperature Range | -65 °C to +150 °C |
The device operates from 0.9 V up to 3.6 V.
Typical propagation delay is 3 ns when VCC is between 3.0 V and 3.6 V.
The input voltage must stay between –0.5 V and +4.6 V.
