Fairchild FDN352AP Single P-Channel PowerTrench MOSFET Datasheet

FDN352AP is a low power P-channel logic level MOSFET manufactured by Fairchild Semiconductor. This device is produced using Fairchild Semiconductor's advanced Power Trench process, which provides extremely low on-state resistance and low gate charge for superior switching performance.

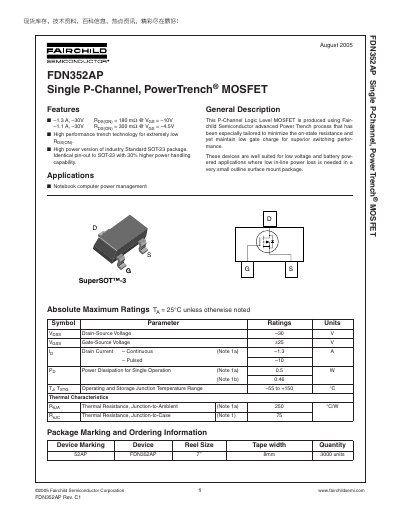

Fairchild FDN352AP Single P-Channel PowerTrench MOSFET Datasheet - cover page
Brand
Fairchild
Category
Other device
Document type
Datasheet
Language
English
Pages
5
File format
PDF
File size
135 KB
Published
12 April, 2012
Updated
30 September, 2023
MD5 checksum
544E965D01FB18BD6A837CE7334E3D61

About this manual

The FDN352AP is a single P‑Channel Logic Level MOSFET produced with Fairchild's PowerTrench technology. It is optimized for low‑voltage and battery‑powered designs, offering very low on‑state resistance and low gate charge in a compact SOT‑23 package. Typical applications include notebook computer power management and other low‑power circuits.

Key specifications include a –30 V drain‑source breakdown voltage, –1.3 A continuous drain current, on‑resistance as low as 180 mΩ at VGS = –10 V, and a maximum power dissipation of 0.5 W. Thermal performance is defined by a junction‑to‑ambient resistance of 250 °C/W (typical) and a junction‑to‑case resistance of 75 °C/W.

What's inside

  • Features
  • General Description
  • Absolute Maximum Ratings
  • Electrical Characteristics
  • Thermal Characteristics
  • Typical Characteristics
  • Package Information
  • Disclaimer

Specifications

Drain‑Source Voltage (V_DSS)-30 V
On‑Resistance (R_DS(on)) @ V_GS = –10 V180 mΩ

Frequently asked questions

What is the maximum drain‑source voltage rating?

The device is rated for a maximum drain‑source voltage of –30 V.

What is the on‑resistance at a gate voltage of –10 V?

The on‑resistance is 180 mΩ when V_GS = –10 V.
