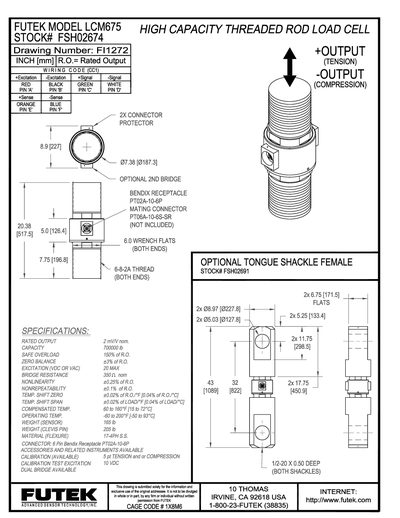

The LCM675 is a high‑capacity threaded rod load cell designed for tension and compression applications. It offers a rated output of 2 mV/V, a safe overload of 150 % of rated output, and a capacity of 700 000 lb. The sensor is built from 17‑4PH stainless‑steel flexure and includes a 6‑pin Bendix connector (PT02A‑10‑6P).
Optional accessories include a tongue‑shackle female connector, a second bridge, and various mounting hardware. Calibration services are available for both tension and compression modes, and a dual‑bridge version can be ordered. The device operates from 20 V excitation (DC or AC) and is compensated for temperatures from 60 °F to 160 °F (15 °C to 72 °C).
| Rated Output | 2 mV/V nominal |
|---|---|
| Capacity | 700000 lb |
| Safe Overload | 150% of R.O. |
| Zero Balance | 43% of R.O. |
| Excitation Voltage | 20 V max (DC or AC) |
| Bridge Resistance | 350 Ω nominal |
| Nonlinearity | 40.25% of R.O. |
| Nonrepeatability | 40.1% of R.O. |
| Temperature Shift (Zero) | 0.02% of R.O./°F (0.04% of R.O./°C) |
| Temperature Shift (Span) | 40.02% of LOAD/°F (0.04% of LOAD/°C) |
| Compensated Temperature Range | 60‑160 °F (15‑72 °C) |
| Operating Temperature Range | 60‑200 °F (‑50‑93 °C) |
| Sensor Weight | 165 lb |
| Clevis Pin Weight | 205 lb |
| Flexure Material | 17‑4PH stainless steel |
| Connector Type | 6‑pin Bendix Receptacle PT02A‑10‑6P |
The rated output is 2 mV/V nominal.
The LCM675 can handle a capacity of 700 000 lb.
It operates from 60 °F to 200 °F (‑50 °C to 93 °C).
It uses a 6‑pin Bendix Receptacle PT02A‑10‑6P connector.
