LCF775 is a tension and compression force sensor produced by FUTEK. It has an output voltage

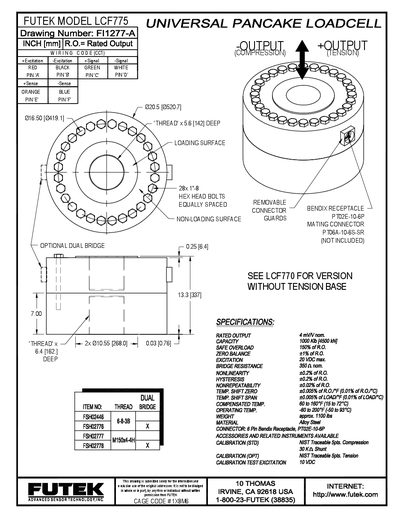

The LCF775 is a universal pancake load cell offered by Futek. It features a 6‑pin Bendix receptacle connector (PTO2E-10-6P) and a wiring configuration of +Excitation, -Excitation, +Signal, -Signal on pins A‑D with +Sense and -Sense on pins E‑F. The load cell is designed for applications requiring a compact form factor and high accuracy.
Key specifications include a zero‑balance of 21% of rated output, nonlinearity of 10.2% of R.O., hysteresis of 20.2% of R.O., and a compensated temperature range of 60 °F to 160 °F (15 °C to 72 °C). Optional accessories such as dual bridge configurations and calibration kits are available, and the unit weighs approximately 1100 tbs and is constructed from alloy steel.
| Zero Balance | 21% of RO |
|---|---|
| Nonlinearity | 10.2% of R.O. |
| Hysteresis | 20.2% of R.O. |
| Nonrepeatability | 40.02% of R.0. |
| Temperature Shift Zero | 0.01% of R.O./°C |
| Compensated Temperature Range | 60 °F to 160 °F (15 °C to 72 °C) |
| Operating Temperature (Thread Bridge) | -60 °F to 200 °F (-50 °C to 93 °C) |
| Weight | approx. 1100 tbs |
| Material | Alloy Steel |
| Connector | 6‑pin Bendix Receptacle, PTO2E-10-6P |
The LCF775 uses +Excitation, -Excitation, +Signal, -Signal on pins A‑D and +Sense, -Sense on pins E‑F.
The zero‑balance is specified as 21% of the rated output.
It is compensated for temperatures from 60 °F to 160 °F (15 °C to 72 °C).
The load cell uses a 6‑pin Bendix receptacle (part number PTO2E-10-6P).
