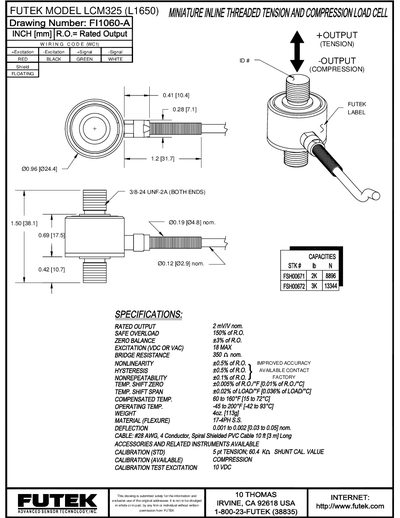

This document is about a sensor called FUTEK LCM325 (L1650)
The Futek LCM325 is a miniature inline threaded load cell designed for both tension and compression measurements. It features a compact form factor with a 3/8‑24 UNF‑2A threaded connection at both ends and a 4‑oz (113 g) stainless‑steel flexure body.
Key performance figures include a rated output of 2 mV/N, safe overload of 150 % of rated output, and temperature compensation of 0.005 % of R.O./°F. The device operates from 60 °F to 160 °F (15 °C to 72 °C) with an extended range down to –45 °F (–42 °C) and up to 200 °F (93 °C). Wiring is provided via a #28 AWG, 4‑conductor spiral‑shielded PVC cable, 10 ft long.
| Rated Output | 2 mV/N (nominal) |
|---|---|
| Safe Overload | 150 % of rated output |
| Zero Balance | 43 % of rated output |
| Excitation Voltage | Up to 18 V DC or AC |
| Bridge Resistance | 350 Ω (nominal) |
| Nonlinearity | ≤ 0.5 % of rated output |
| Hysteresis | ≤ 0.5 % of rated output |
| Non‑repeatability | ≤ 0.1 % of rated output |
| Temperature Shift (Zero) | 0.005 % of R.O/°F (0.01 %/°C) |
| Temperature Shift (Span) | 0.02 % of load/°F (0.036 %/°C) |
| Operating Temperature | 60 °F–160 °F (15 °C–72 °C) |
| Extended Temperature Range | -45 °F–200 °F (-42 °C–93 °C) |
| Weight | 4 oz (113 g) |
| Cable | #28 AWG, 4‑conductor spiral‑shielded PVC, 10 ft |
The LCM325 provides a nominal rated output of 2 mV per newton.
It can withstand a safe overload of up to 150 % of its rated output.
The load cell can be powered with up to 18 V DC or AC.
It operates from 60 °F to 160 °F (15 °C to 72 °C) and can be used from –45 °F to 200 °F (–42 °C to 93 °C) in extended mode.
