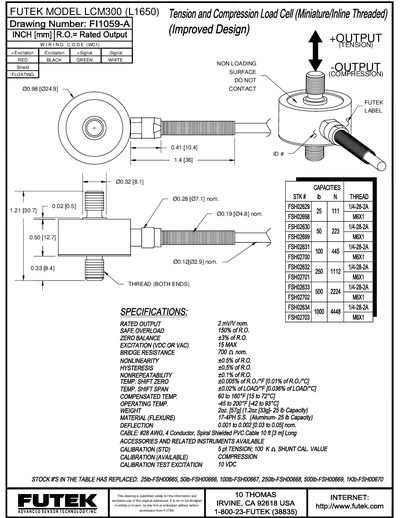

This document is the technical manual for FUTEK LCM300 (L1650)
The LCM300 load cell is designed for miniature inline applications, offering both tension and compression measurement in a threaded form factor. It features a rated output of 2 mV/V, safe overload capability of 150 % of rated output, and a compact construction using 17‑4PH stainless steel flexure.
Key specifications include excitation up to 15 V DC/AC, bridge resistance of 700 Ω, and temperature compensation from -45 °F to 200 °F. The device ships with a #28 AWG, 4‑conductor spiral‑shielded PVC cable (10 ft) and is supported by calibration services and a range of accessories.
| Rated Output | 2 mV/V (nominal) |
|---|---|
| Safe Overload | 150 % of R.O. |
| Zero Balance | 3 % of R.O. |
| Excitation Voltage | 15 V (max) DC or AC |
| Bridge Resistance | 700 Ω (nominal) |
| Nonlinearity | 0.5 % of R.O. |
| Hysteresis | 40.5 % of R.O. |
| Non‑repeatability | 0.1 % of R.O. |
| Temp. Shift Zero | 0.005 % of R.O./°F |
| Temp. Shift Span | 0.02 % of LOAD/°F |
| Operating Temperature | -45 °F to 200 °F (‑42 °C to 93 °C) |
| Capacity | 25 lb |
| Flexure Material | 17‑4PH stainless steel |
| Cable | #28 AWG, 4‑conductor, spiral‑shielded PVC, 10 ft (3 m) |
The LCM300 has a rated output of 2 mV/V (nominal).
It can tolerate overloads up to 150 % of its rated output.
The load cell accepts up to 15 V DC or AC as excitation.
It operates from -45 °F to 200 °F (‑42 °C to 93 °C).
