This document describes the wiring code and connection method of FUTEK model LCF700, as well as its features and characteristics.

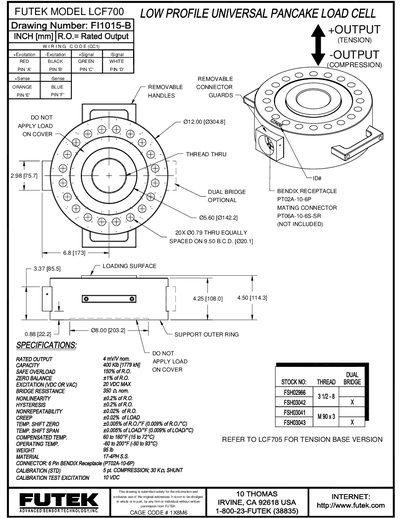

The LCF700 is a low‑profile universal pancake load cell designed for tension and compression applications. The handbook includes the drawing number, wiring code, and mechanical dimensions needed for installation.
Key specifications such as rated output, capacity, excitation limits, temperature ranges, and connector type are listed, along with calibration notes and safety warnings (e.g., do not apply load on the cover).
| Rated Output | 4 mV/V |
|---|---|
| Capacity | 400 kN |
| Safe Overload | 150 % of rated output |
| Excitation Voltage | 20 VDC max |
| Operating Temperature | -60 °F to 200 °F (-60 °C to 93 °C) |
| Weight | 95 lb |
| Material | 17‑4 PH stainless steel |
| Connector | 6‑pin Bendix receptacle (PT02A‑10‑6P) |
The rated output is 4 mV/V.
The excitation voltage can be up to 20 VDC (or VAC).
It operates from –60 °F to 200 °F (–60 °C to 93 °C).
It uses a 6‑pin Bendix receptacle, part number PT02A‑10‑6P.
