This document provides detailed information about the LCF800 series coil voltage sensor, including dimensions, connection methods, electrical parameters, etc.

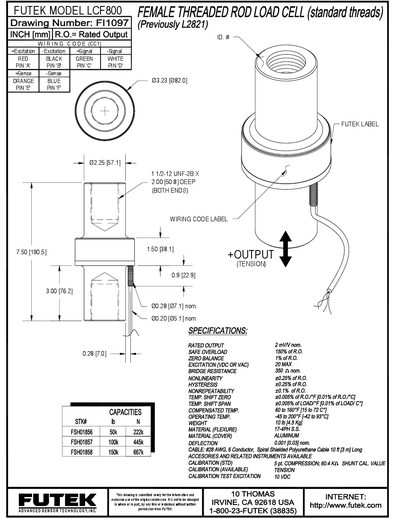

The LCF800 is a female‑threaded rod load cell from Futek, designed for tension and compression measurements. The sheet includes the wiring code, material construction, and available accessories.
Key specifications such as rated output, safe overload, excitation limits, temperature range, and mechanical details are listed, along with calibration options and cable information.
| Rated Output | 2 mV/V (nominal) |
|---|---|
| Safe Overload | 150 % of rated output |
| Zero Balance | 1 % of rated output |
| Excitation Voltage | Up to 20 VDC or VAC |
| Bridge Resistance | 350 Ω (nominal) |
| Nonlinearity | 0.25 % of rated output |
| Hysteresis | 0.25 % of rated output |
| Non‑repeatability | 40.1 % of rated output |
| Temperature Shift (Zero) | 0.005 % of R.O./°F (0.01 %/°C) |
| Temperature Shift (Span) | 0.005 % of LOAD/°F (0.01 %/°C) |
| Compensated Temperature Range | 60 °F to 160 °F (15 °C to 72 °C) |
| Operating Temperature | -45 °F to 200 °F (-42 °C to 93 °C) |
| Weight | 10 lb |
| Flexure Material | 17‑4PH stainless steel |
| Cover Material | Aluminum |
| Deflection | 0.001 in (0.03 mm) nominal |
| Cable | #28 AWG, 6‑conductor, spiral‑shielded polyurethane, 10 ft |
The rated output is 2 mV/V nominal.
The load cell can tolerate a safe overload of 150 % of its rated output.
It can be powered with up to 20 VDC or VAC.
The device operates from –45 °F to 200 °F (–42 °C to 93 °C).
