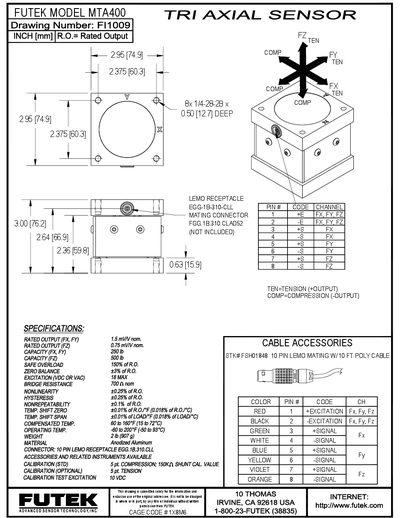

MTA400 wiring diagram
The MTA400 is a tri‑axial force sensor offered by Futek. It measures tension (FX) and compression (FY, FZ) with separate output channels and is supplied with a 10‑pin LEMO receptacle.
The sheet lists electrical ratings such as a 1.5 mV nominal output for the FX channel, 0.75 mV for FZ, and a maximum excitation voltage of 18 V (DC or AC). Mechanical specifications include a capacity of 500 lb for the FZ channel, safe overload of 150 % of rated output, and a compensated temperature range of 60 °F to 160 °F (15 °C to 72 °C). Accessories such as a 10‑ft poly cable are also noted.
| Rated Output (FX) | 1.5 mV nominal |
|---|---|
| Rated Output (FZ) | 0.75 mV nominal |
| Capacity (FZ) | 500 lb |
| Safe Overload | 150 % of R.O. |
| Zero Balance | ±3 % of R.O. |
| Excitation Voltage | 18 V max (DC or AC) |
| Bridge Resistance | 700 Ω nominal |
| Compensated Temperature Range | 60 °F to 160 °F (15 °C to 72 °C) |
| Operating Temperature | -50 °C to 93 °C |
| Material | Anodized Aluminum |
| Connector | 10‑pin LEMO receptacle (EGG‑1B‑310‑CLL) |
The FX channel has a rated output of 1.5 mV nominal.
The sensor can be excited with up to 18 V, either DC or AC.
Compensated measurements are valid from 60 °F to 160 °F (15 °C to 72 °C).
It uses a 10‑pin LEMO receptacle (part number EGG‑1B‑310‑CLL).
