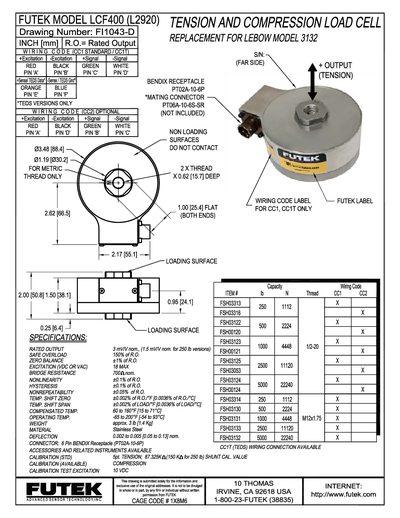

The FUTEK LCF400 is a tension and compression load cell designed for precise force measurement in industrial applications. It features a stainless‑steel construction and a 6‑pin BENDIX (PT02A‑10‑6P) connector.
The sheet lists wiring options (CC1, CC1T, CC2), rated output, calibration procedures, and environmental limits such as temperature compensation, safe overload, and excitation voltage.
| Rated Output | 3 mV/V (nominal) |
|---|---|
| Safe Overload | 150% of R.O. |
| Zero Balance | +1% of R.O. |
| Excitation Voltage | Up to 18 VDC or VAC |
| Bridge Resistance | 700 Ω (nominal) |
| Temperature Shift (Zero) | 0.002% of R.O./°F (0.036% of R.O./°C) |
| Temperature Shift (Span) | 0.002% of LOAD/°F (0.036% of LOAD/°C) |
| Compensated Temperature Range | 60 to 160 °F (15 to 71 °C) |
| Material | Stainless Steel |
| Deflection | 0.002 to 0.005 in (0.05 to 0.13 mm) nominal |
| Connector | 6‑pin BENDIX Receptacle (PT02A‑10‑6P) |
| Standard Tension Calibration | 87.325 kΩ (150 kΩ for 250 lb) |
| Compression Calibration | Available |
The LCF400 provides a rated output of 3 mV/V (nominal).
The load cell can be excited with up to 18 VDC or VAC.
It uses a 6‑pin BENDIX receptacle (part number PT02A‑10‑6P).
The device is compensated from 60 °F to 160 °F (15 °C to 71 °C).
