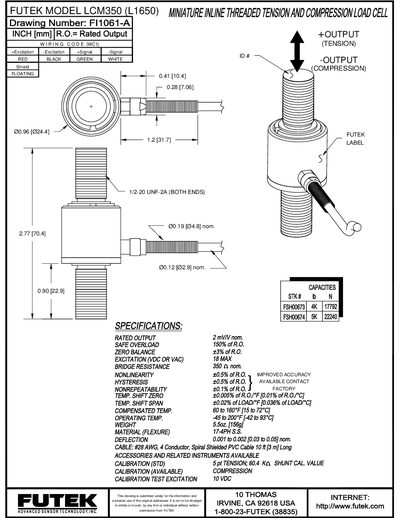

This is a CAD drawing of an electromagnetic sensor, which provides information such as product dimensions and wiring
The LCM350 is a miniature inline threaded load cell designed for both tension and compression measurements. It features a 1/2-20 UNF-2A threaded connection on both ends and a compact form factor suitable for tight installation spaces.
Key specifications include a rated output of 2 mV/V, safe overload of 150 % of rated output, and a temperature‑compensated range from –45 °F to 200 °F. The device ships with a 10 ft (3 m) #28 AWG 4‑conductor spiral‑shielded PVC cable and optional accessories for calibration and integration.
| Safe Overload | 150 % of R.O. |
|---|---|
| Zero Balance | ±3 % of R.O. |
| Excitation Voltage | Up to 18 V (DC or AC) |
| Nonlinearity | ±0.5 % of R.O. |
| Hysteresis | ±0.5 % of R.O. |
| Non‑repeatability | ±0.1 % of R.O. |
| Compensated Temperature Range | -45 °F to 200 °F (-42 °C to 93 °C) |
| Cable | #28 AWG, 4‑conductor spiral‑shielded PVC, 10 ft (3 m) long |
The load cell can be excited with up to 18 V, either DC or AC.
A 10 ft (3 m) #28 AWG 4‑conductor spiral‑shielded PVC cable is included.
