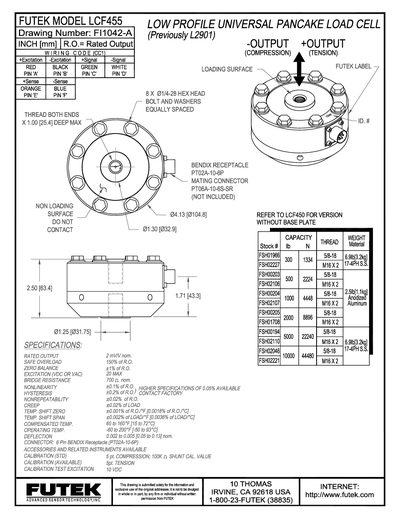

This document provides information about the FUTEK model LCF450 (L2900), including wiring codes and connector information, as well as important notes.
The Futek LCF455 is a low‑profile universal pancake load cell designed for both compression and tension loading. It features a 6‑pin Bendix receptacle (PT02A‑10‑6P) and is supplied with an 8‑x 1/4‑28 hex‑head bolt and washers for mounting.
Key specifications include a rated output of 2 mV/V, safe overload of 150 % of rated output, and operating temperature range from –60 °F to 200 °F. The device offers compensated temperature performance from 60 °F to 160 °F and a deflection range of 0.002–0.005 in (0.05–0.13 mm).
| Rated Output | 2 mV/V nominal |
|---|---|
| Safe Overload | 150 % of RO |
| Zero Balance | 21 % of RO |
| Excitation (VDC or VAC) | 20 V max |
| Bridge Resistance | 700 Ω nominal |
| Nonlinearity | 0.05 % (higher specs available) |
| Hysteresis | 40.2 % of RO |
| Nonrepeatability | 20.02 % of RO |
| Creep | 20.02 % of LOAD |
| Temp. Shift Zero | 0.001 % of RO/°F (0.0018 % of RO/°C) |
| Temp. Shift Span | 0.002 % of LOAD/°F (0.036 % of LOAD/°C) |
| Compensated Temperature Range | 60 °F to 160 °F (15 °C to 72 °C) |
| Operating Temperature Range | -60 °F to 200 °F (-50 °C to 93 °C) |
| Deflection | 0.002 to 0.005 in (0.05 to 0.13 mm) nominal |
The LCF455 has a rated output of 2 mV/V nominal.
The safe overload is 150 % of the rated output.
It operates from –60 °F to 200 °F (–50 °C to 93 °C).
It uses a 6‑pin Bendix receptacle (PT02A‑10‑6P).
