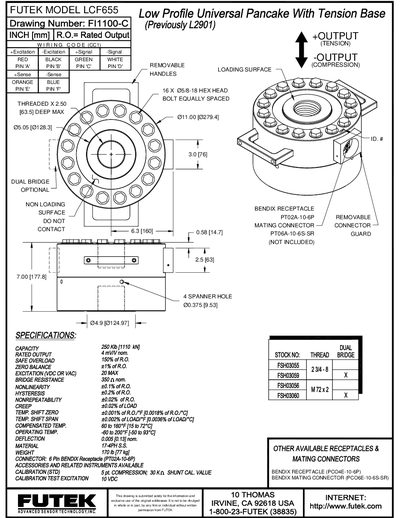

This document is about the wiring diagram of FUTEK LCF655 model bending sensor. The drawing includes the wiring code and connector model information.
The LCF655 is a low‑profile universal pancake load cell with a tension base, designed for compact force measurement applications. It features a 6‑pin BENDIX receptacle and optional mating connectors.
The handbook lists key specifications such as a 250 kN capacity, 4 mV/V rated output, 150 % safe overload, and operating temperatures from –60 °F to 200 °F. Electrical characteristics include 20 V maximum excitation, 350 Ω bridge resistance, and detailed non‑linearity, hysteresis, and creep values.
| Capacity | 250 kN (1110 kN) |
|---|---|
| Rated Output | 4 mV/V nominal |
| Safe Overload | 150 % of rated output |
| Excitation Voltage | 20 V max (DC or AC) |
| Bridge Resistance | 350 Ω nominal |
| Operating Temperature | -60 °F to 200 °F (‑50 °C to 93 °C) |
| Connector Type | 6‑pin BENDIX Receptacle (PT02A‑10‑6P) |
| Weight | 170 lb (77 kg) |
The rated output is 4 mV/V nominal.
It has a capacity of 250 kN (1110 kN).
The sensor operates from –60 °F to 200 °F (‑50 °C to 93 °C).
It uses a 6‑pin BENDIX receptacle (PT02A‑10‑6P).
