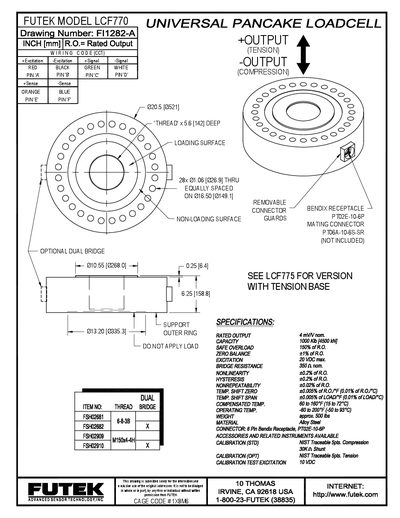

The document provides information about FUTEK MODEL LCF770, including features such as connectors, wiring code, loading surface, and output.
The LCF770 is a universal pancake loadcell designed for both tension and compression applications. The handbook outlines the wiring configuration, connector types, and optional accessories available for the sensor.
Key performance specifications such as rated output, capacity, temperature compensation, and mechanical dimensions are listed, along with calibration options and material construction details.
| Rated Output | 4 mV (nominal) |
|---|---|
| Capacity | 1000 kN (4500 kN) |
| Zero Balance | 21 % of RO |
| Excitation Voltage | 20 VDC max |
| Bridge Resistance | 350 Ω (nominal) |
| Temperature Range (Compensated) | 60 °F to 160 °F (15 °C to 72 °C) |
| Weight | ≈ 500 lb |
| Material | Alloy Steel |
| Connector | 6‑Pin Bendix Receptacle, PTO2E‑10‑6P |
The LCF770 provides a nominal rated output of 4 mV.
The loadcell can handle up to 1000 kN (4500 kN).
The device can be excited with up to 20 VDC.
Compensated measurements are valid from 60 °F to 160 °F (15 °C to 72 °C).
