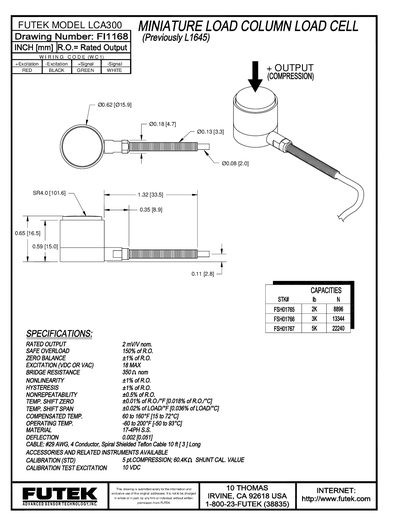

The drawing is a wiring diagram for the FUTEK LCA300 model.
The LGA300 is a miniature load column load cell designed for compression measurements. It features a stainless‑steel (17‑4PH) construction and a compact form factor suitable for tight spaces.
The leaflet lists the cell's electrical characteristics, temperature limits, cable recommendations, and available accessories, along with capacity codes for different load ranges.
| Rated Output | 2 mV/V nominal |
|---|---|
| Safe Overload | 150 % of R.O. |
| Zero Balance | 41 % of R.O. |
| Excitation Voltage | 18 V (DC or AC) max |
| Bridge Resistance | 350 Ω nominal |
| Nonlinearity | 141 % of R.O. |
| Hysteresis | +1 % of R.O. |
| Nonrepeatability | 10.5 % of R.O. |
| Temperature Shift (Zero) | +0.01 % of R.O./°F (0.018 %/°C) |
| Temperature Shift (Span) | 0.02 % of load/°F (0.036 %/°C) |
| Compensated Temperature Range | 60 °F to 160 °F (15 °C to 72 °C) |
| Operating Temperature | -60 °F to 200 °F (-50 °C to 93 °C) |
| Material | 17‑4PH stainless steel |
| Deflection | 0.002 in (0.051 mm) |
| Cable | #29 AWG, 4‑conductor, spiral shielded Teflon, 10 ft |
The rated output is 2 mV/V nominal.
The cell can be excited with up to 18 V, either DC or AC.
It operates from –60 °F to 200 °F (–50 °C to 93 °C).
A #29 AWG, 4‑conductor, spiral shielded Teflon cable, 10 ft long, is recommended.
