This document is a wiring diagram for a product from FUTEK. It includes color coding and connection methods for the connecting cables, as well as some recommendations for installation and use of the product.

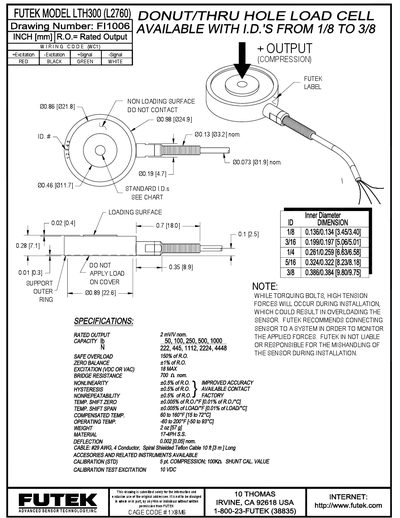

This manual contains the drawing number, output characteristics, wiring code, dimensions, and loading surface details for the FUTEK LTH300/L2760 sensor. It also includes safety notes such as high‑tension forces that can occur while torquing bolts and warnings against over‑loading the sensor during installation.
Additional sections cover calibration, cable requirements, accessory information, and contact details for FUTEK support. Technical specifications such as weight, material, and deflection are listed, along with recommended cable type and accuracy data.
| Weight | 2 oz |
|---|---|
| Material | Stainless steel |
| Deflection | 0.00205 nom. |
| Cable | 9 AWG 4‑conductor |
A 9 AWG 4‑conductor cable is recommended for connecting the sensor.
The sensor weighs 2 oz.
The sensor is made of stainless steel.
