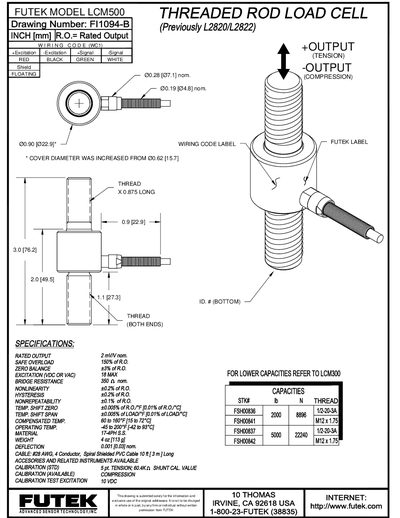

This document contains product information and wiring diagram for the FUTEK model LCM500.
The LCM500 is a threaded‑rod load cell designed for tension and compression measurements. It features a 2 mV/V nominal output and a robust 17‑4PH stainless‑steel construction.
Key specifications include a safe overload of 150 % of rated output, operating temperature from –45 °F to 200 °F, and a 0.004 mm deflection. Wiring uses red/black for excitation and green/white for signal, with a shielded cable. Calibration accessories and related instruments are available from Futek.
| Rated Output | 2 mV/V nominal |
|---|---|
| Safe Overload | 150 % of rated output |
| Zero Balance | 23 % of rated output |
| Excitation Voltage | Up to 18 VDC or VAC |
| Bridge Resistance | 350 Ω nominal |
| Nonlinearity | 0.20 % of rated output |
| Hysteresis | 0.20 % of rated output |
| Operating Temperature | ~‑45 °F to 200 °F (‑42 °C to 93 °C) |
| Material | 17‑4PH stainless steel |
| Weight | 402 g (113 g listed) |
The LCM500 provides a rated output of 2 mV/V nominal.
Excitation uses red (+) and black (‑); signal uses green (+) and white (‑), with a shield.
The load cell operates from approximately ‑45 °F to 200 °F (‑42 °C to 93 °C).
It is constructed from 17‑4PH stainless steel.
