This PDF document provides information on the wiring connections and labeling of the FUTEK LCM525 model. The product features white signal, green and black signal wires, and red excitation wire.

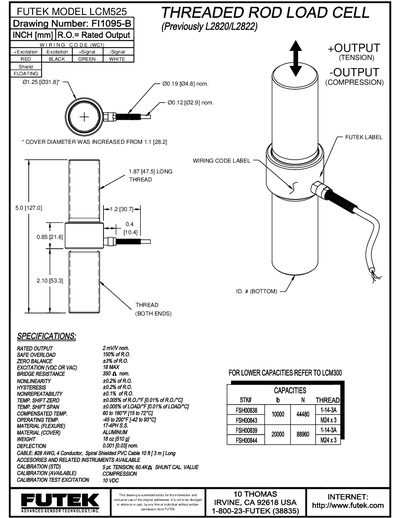

This document is a specifications sheet for the Futek LCM525 threaded‑rod load cell (formerly L2820/L2822). It lists the mechanical and electrical characteristics needed for selection, installation, and calibration of the sensor.
Key data include a 2 mV/V nominal output, 150 % safe overload, excitation up to 18 V (DC or AC), operating temperature from 45 °F to 200 °F, and construction details such as a 17‑4PH flexure and aluminum cover. Wiring information, cable type, and calibration options are also provided.
| Rated Output | 2 mV/V nominal |
|---|---|
| Safe Overload | 150 % of rated output |
| Zero Balance | ±0.3 % of rated output |
| Excitation Voltage | Up to 18 V (DC or AC) |
| Bridge Resistance | 350 Ω nominal |
| Operating Temperature | 45 °F to 200 °F (‑42 °C to 93 °C) |
| Compensated Temperature Range | 60 °F to 160 °F (15 °C to 72 °C) |
| Material (Flexure) | 17‑4PH stainless steel |
| Material (Cover) | Aluminum |
| Weight | 18 oz (510 g) |
| Cable | #28 AWG, 4‑conductor, spiral‑shielded PVC, 10 ft |
The LCM525 has a nominal rated output of 2 mV/V.
It can tolerate a safe overload of 150 % of its rated output.
The load cell operates from 45 °F to 200 °F (‑42 °C to 93 °C).
Excitation can be supplied up to 18 V, either DC or AC.
