FQPF7N20L is a 200V N-Channel MOSFET produced by Fairchild. It features low gate charge and low on-state resistance, making it suitable for high efficiency switching DC/DC converters, switch mode power supplies and motor control applications.

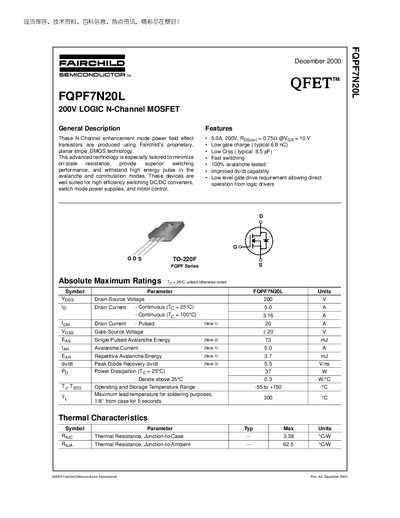

The FQPF7N20L is a 200 V logic N‑channel MOSFET fabricated with Fairchild’s planar stripe DMOS technology. It is designed for high‑efficiency switching in DC‑DC converters, switch‑mode power supplies, and motor‑control applications, offering low on‑state resistance and fast switching.
Key specifications include a 200 V drain‑source breakdown voltage, 5 A continuous drain current at 25 °C (20 A pulsed), ±20 V gate‑source rating, typical on‑resistance of 0.62‑0.78 mΩ, total gate charge of 9 nC, and a power dissipation rating of 37 W. The device is supplied in a TO‑220F package with thermal resistance of 3.38 °C/W (junction‑to‑case) and 62.5 °C/W (junction‑to‑ambient).
| Drain‑Source Voltage (VDS) | 200 V |
|---|---|
| Continuous Drain Current (ID) @ 25 °C | 5.0 A |
| Gate‑Source Voltage (VGS) | ±20 V |
The device is rated for a maximum drain‑source voltage of 200 V.
It can carry up to 5.0 A continuous drain current at a junction temperature of 25 °C.
