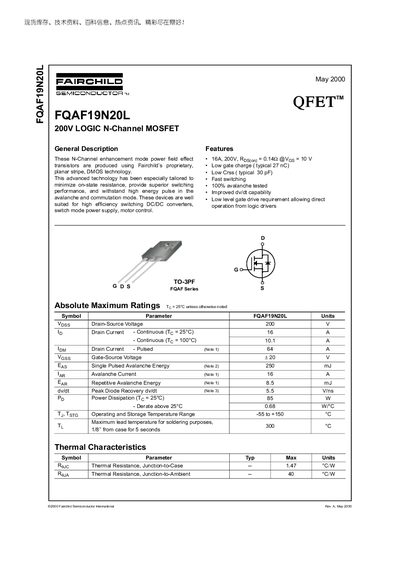

The FQAF19N20L is a 200 V logic N‑Channel MOSFET produced with Fairchild’s planar stripe DMOS technology. It is designed for high‑efficiency switching in DC/DC converters, SMPS, and motor‑control applications. The device offers low gate charge, low output capacitance, and fast switching performance.
Key features include a continuous drain current of 16 A at 25 °C, a pulsed rating of 64 A, an on‑resistance of 0.142 Ω at Vgs = 10 V, and an avalanche energy rating of 250 mJ. The MOSFET is supplied in a TO‑3PF package and includes detailed electrical and thermal characteristics for design integration.
| Drain‑Source Voltage (VDS) | 200 V |
|---|---|
| Continuous Drain Current (Id) @ 25 °C | 16 A |
| Continuous Drain Current (Id) @ 100 °C | 10.1 A |
| Pulsed Drain Current (Id) (Note 1) | 64 A |
| Gate‑Source Voltage (VGS) | +20 V |
| On‑Resistance (RDS(on)) @ VGS=10 V | 0.142 Ω |
| Total Gate Charge (Qg) | 27 nC typical |
| Power Dissipation (PD) @ 25 °C | 85 W |
| Thermal Resistance, Junction‑to‑Case | 1.47 °C/W |
| Thermal Resistance, Junction‑to‑Ambient | 40 °C/W |
The device can conduct up to 16 A continuously at a case temperature of 25 °C.
It is rated for a single‑pulse avalanche energy of 250 mJ and a repetitive avalanche energy of 8.5 mJ.
The typical total gate charge is 27 nC.
